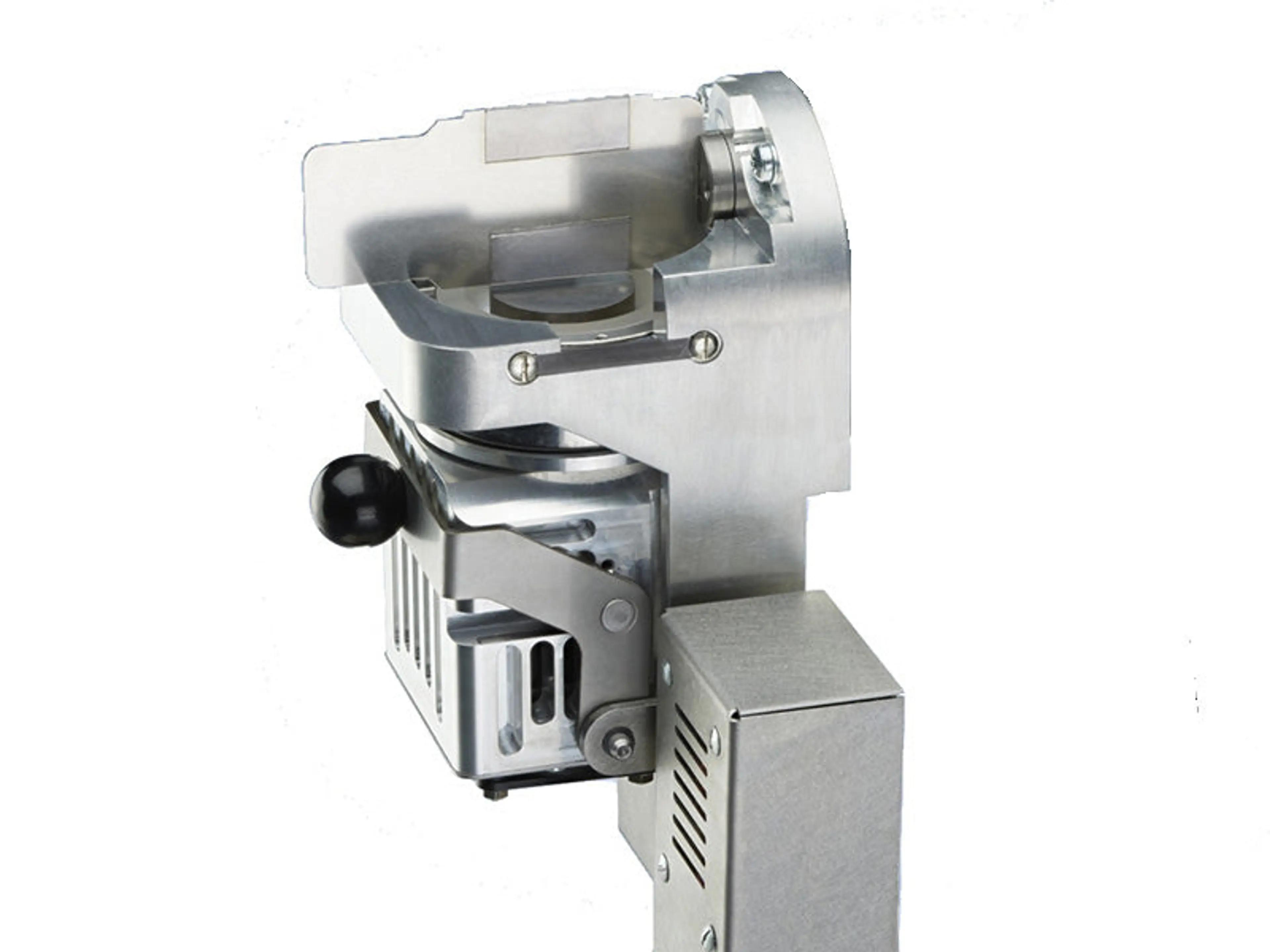

ROTATING SAMPLE STAGE WITH 12-POS SAMPLE CHANGER

12-position sample changer with sample rotation for powdered samples

Specifications:

• Specimen holders with 32 mm diameter and 7.5 mm height.
• Rotation speed is adjustable within 0 rpm to 80 rpm.
• The stage can be mounted by the user at the self-centering stage-mounting interface of the goniometer.

Included:

• Alignment Kit (glass slit, fluorescent screen, corundum reference sample)

Optional (not included):

• Fixed (A26B36 / A26B37 for low angle) or motorized (A52D29) anti-scatter screen to reduce background
• Specimen holder
• Tungsten reference and verification sample 32 mm for Mo radiation (A52D133)
