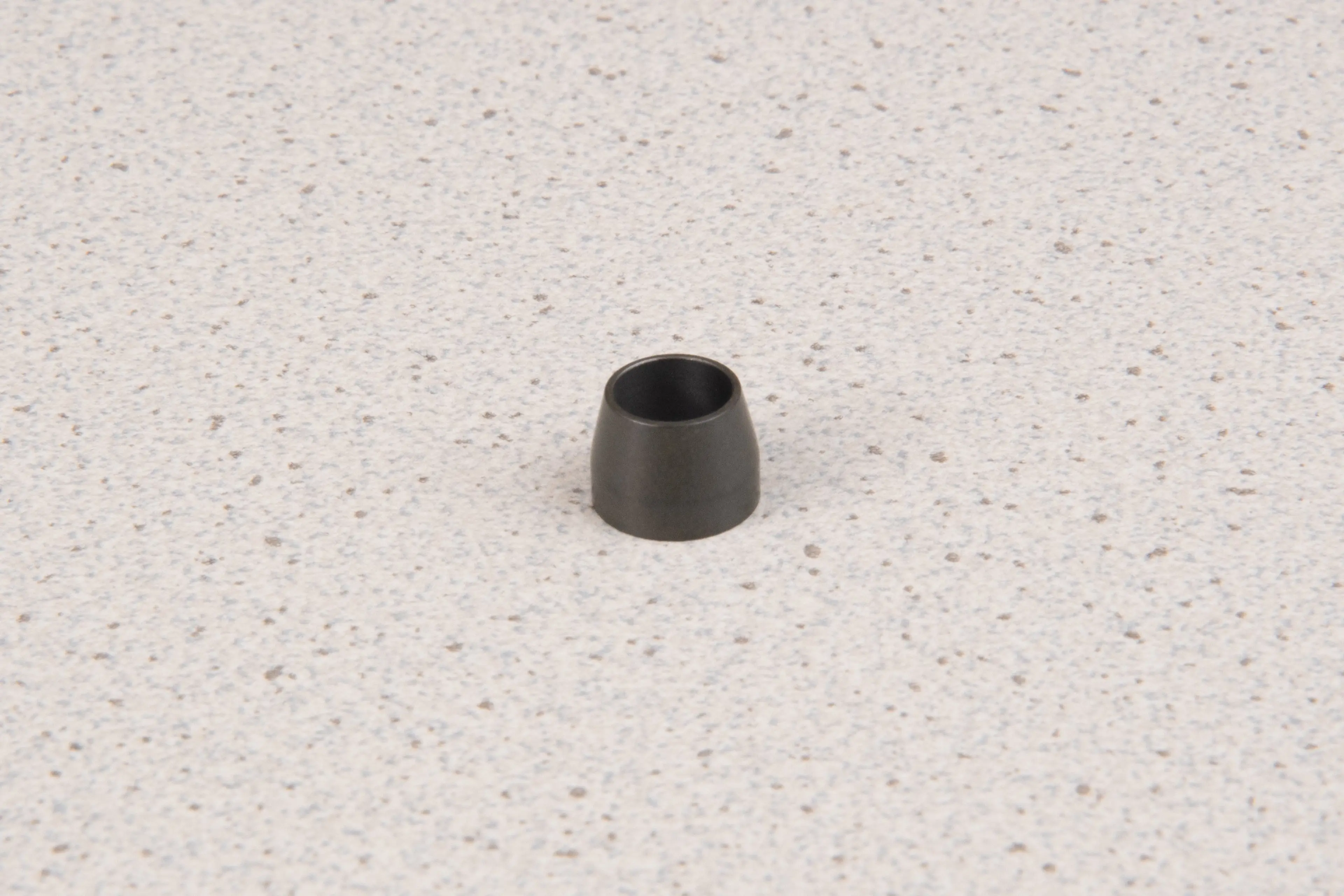

1/4" Graphite Vespel Ferrule

The 1/4" Graphite Vespel Ferrule is a high-performance sealing solution designed for gas chromatography (GC) applications. Composed of a 60% Vespel / 40% graphite composition, it delivers an optimal balance of sealing integrity, durability, and ease of installation. Designed for vacuum and high-pressure environments, this ferrule requires minimal torque, ensuring a secure, leak-free seal with reusability. With a temperature stability of up to 400°C, it performs reliably in high-temperature transfer lines and demanding GC-MS workflows.

• Ferrule Size: 1/4" inner diameter
• Nut Size: 1/4 inch

• Premium material blend: 60% Vespel / 40% Graphite composition offers superior sealing performance
• High temperature stability: Withstands temperatures up to 400°C, ensuring durability in demanding conditions
• Minimal torque requirement: Easy to install and reusable, reducing wear and tear on fittings
• Non-porous and low friction: Enhances wear resistance and dimensional stability
• Ideal for mass spec transfer lines: Recommended for GC-MS applications
• Standard compatibility: Fits 1/4" Swagelok / Parker-type fittings

• Gas Chromatography (GC)
• High-Pressure GC Applications

• Standard 1/4" Swagelok and Parker-type fittings
• Compatible with glass columns and polyimide-coated, fused-silica capillary columns
