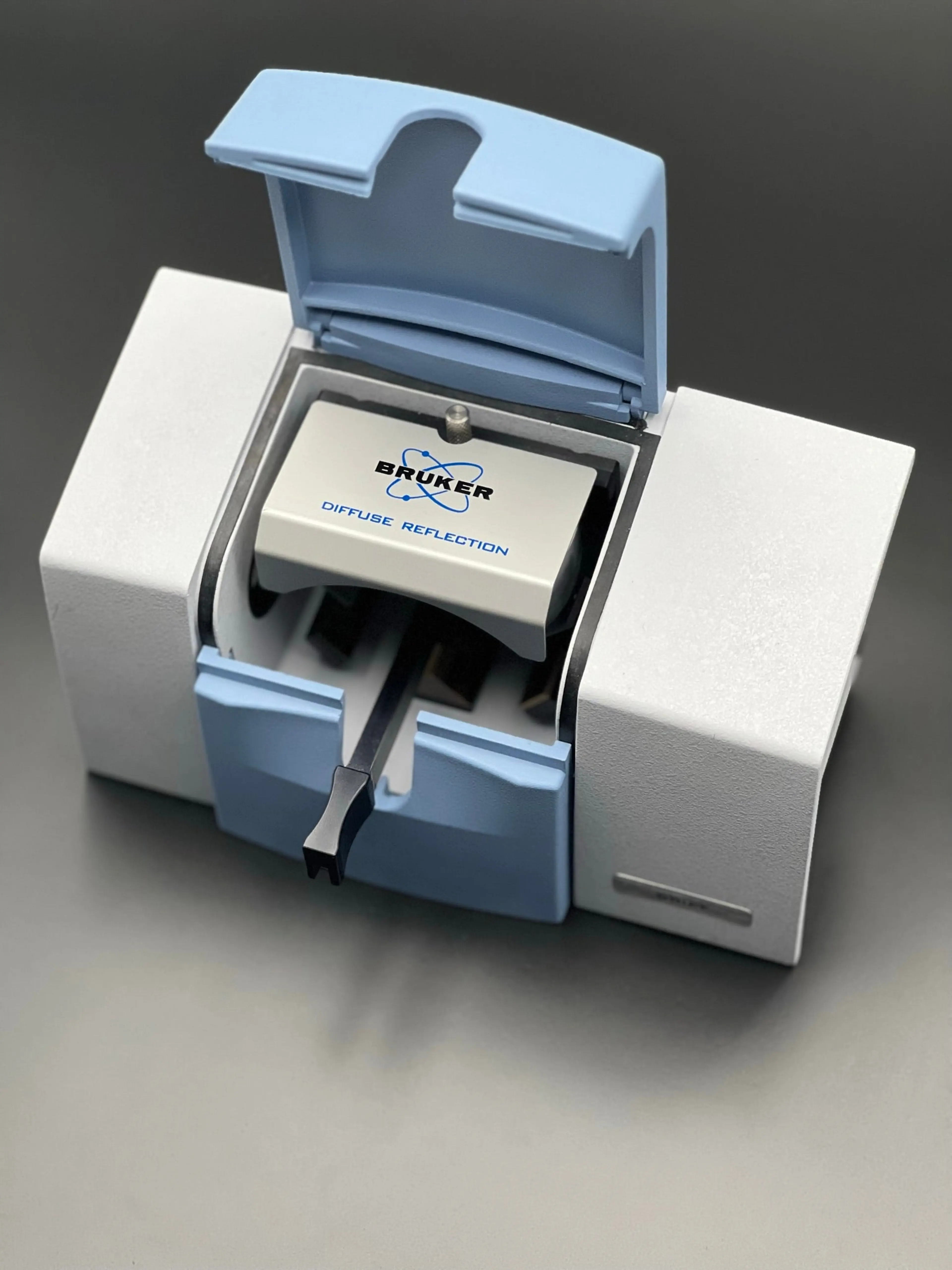

A528/D: DRIFTs sampling module QuickSnap for ALPHA

DRIFT Applications:

The reflectance sampling module enables a fast and reliable FT-IR- analysis of various solid samples in diffuse reflectance, e.g. powder, inorganic material, gemstone, paper, textile. The module is equipped with a two-position slider mechanism for easy loading and measuring of the sample.

The ALPHA QuickSnap sampling modules offer complete sampling flexibility. All modules are easily exchanged without the use of tools and then automatically recognized by the ALPHA FT-IR spectrometer.

Specifications:
- Spectral range: 350-8000 cm-1
- Gold coated optics for maximum efficiency
- Include two sample cups and alignment mirror
- Easy exchange of ALPHA QuickSnap sampling modules with automatic recognition, performance test and automatic load of measurement parameters.

Included: Sampling kit 1009964

Required: ALPHA base spectrometer (A250/Dx) or FT-IR microscope LUMOS with macro unit (A773/LM)
