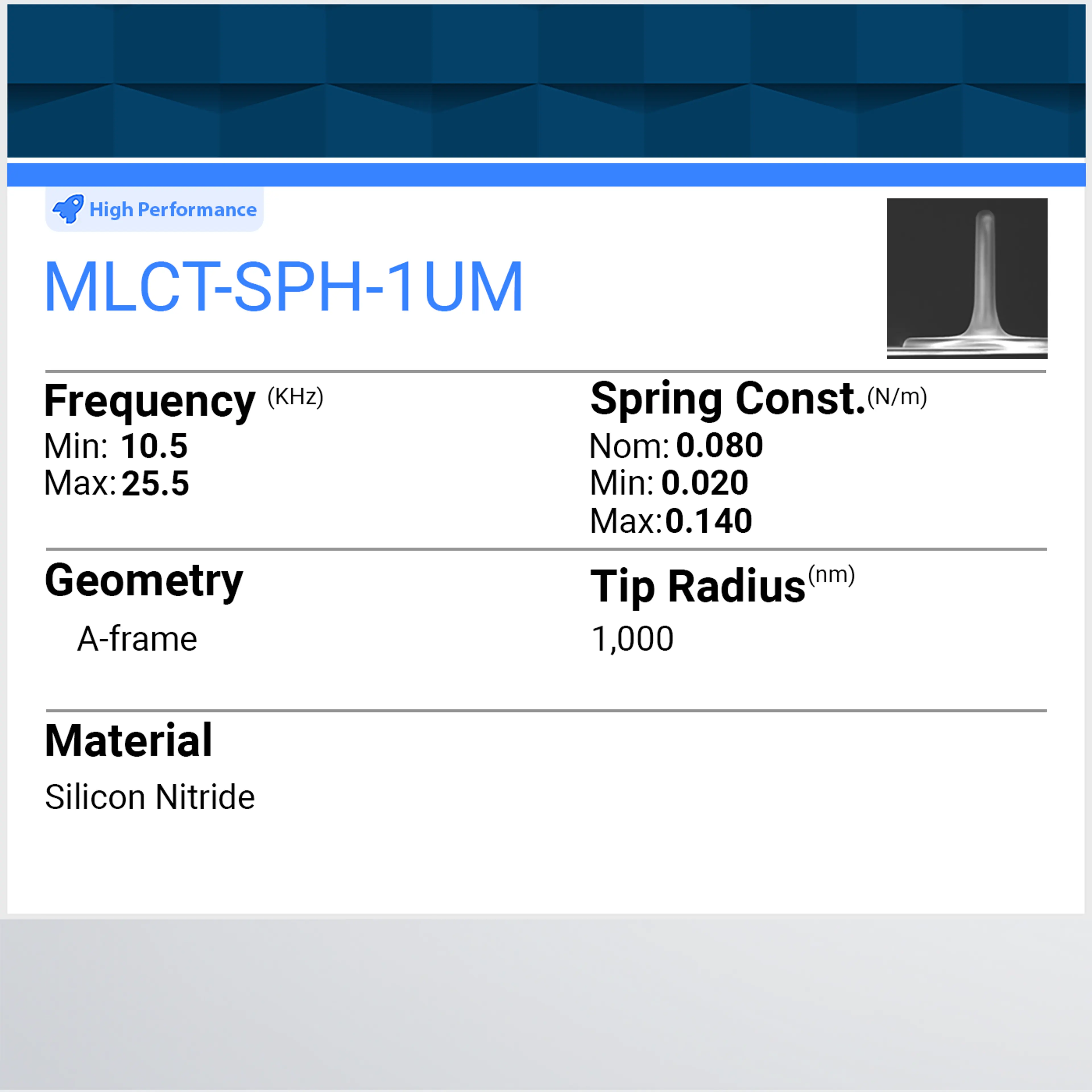

MLCT-SPH-1UM
Description
A novel probe for BioAFM to address life science microrheology applications and quantitative nanomechanical mapping of living cells, tissues, hydrogels and more. Bruker has introduced a sphere tip version of our popular MLCT probes. A ~20um tall, cylindrical tip shank with a large 1 um spherical tip. This probe replaces the need for construction of colloidal probes using tipless cantilevers beads and glue! The microcantilever array provides a range of spring constants - each of which is individually Laser Doppler Vibrometer calibrated for the best accuracy! - so you can match to that which is best suited to your sample.
Quantity = 5 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 1,000 1,250 Frequency (KHz): 18 10.5 25.5 Spring Constant (N/m): 0.08 0.02 0.14 Length (um): 175 180 170 Width (um): 22 17 27 Cantilever Thickness (um): 0.55 0.50 0.60 Cantilever Material: SiN Reflex Coating: Reflective Gold Geometry: Rectangular & A-frame Tip Specification
Nom Min Max Tip Height (h): 18 15 21
