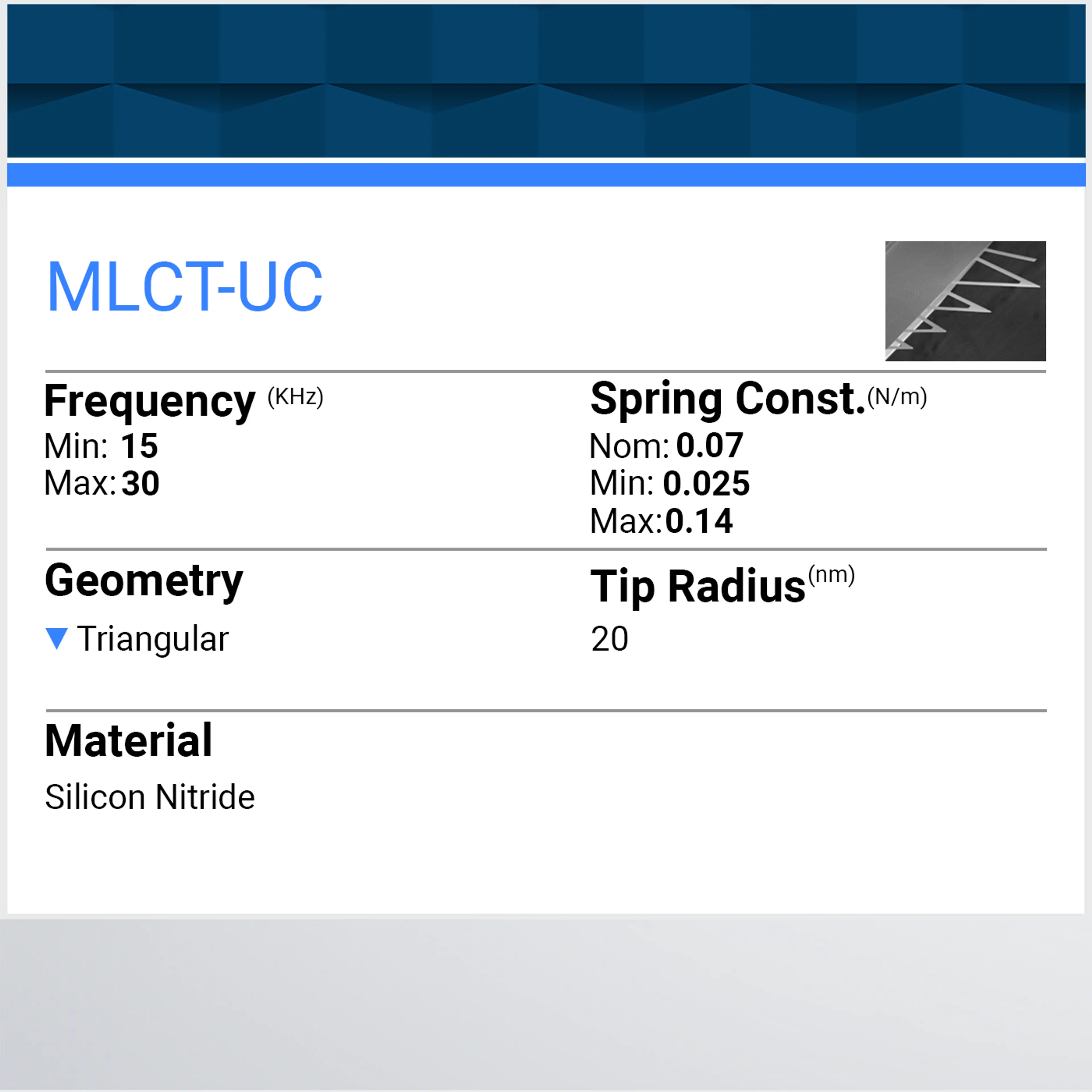

MLCT-UC
Description
Uncoated premium Contact Mode or Fluid TappingMode imaging and force measurement probes with a variety of extremely low spring constants for high force sensitivity
Quantity = 10 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 20 60 Frequency (KHz): 22 15 30 Spring Constant (N/m): 0.07 0.025 0.14 Length (um): 175 170 180 Width (um): 22 15 30 Cantilever Thickness (um): 0.55 0.5 0.6 Cantilever Material: SiN Geometry: Tip Specification
Nom Min Max Tip Height (h): 5.25 2.5 8.0 Front Angle (FA): 15 12.5 17.5 Back Angle (BA): 25 22.5 27.5 Side Angle (SA): 17.5 15 20
