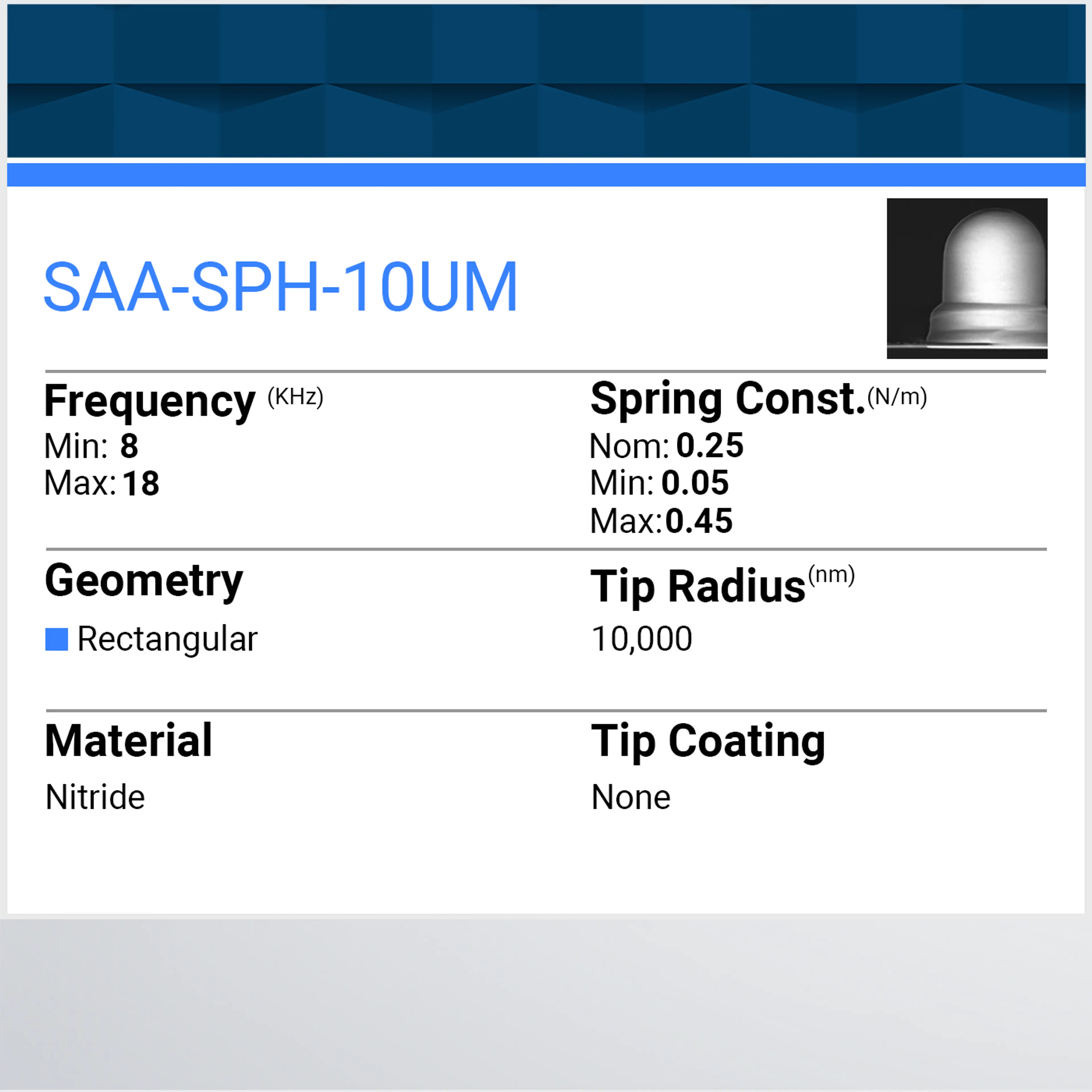

SAA-SPH-10UM
Description
Novel probe for BioAFM, to address life science micro-rheology applications. 28 microns tall, cylindrical tip with large 10 micron end radius, combined with a low 0.25N/m spring constant provides:
Minimal interference between cantilever and high roughness cellular or tissue samples.
Highly reproducible micro-rheology results.
Compatible with very soft samples, moduli from sub-kPa to 100kPa.
Each probe comes with LDV pre-calibrated cantilever.
Quantity = 5 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 10,000 11,000 Frequency (KHz): 13 8 18 Spring Constant (N/m): 0.25 0.05 0.45 Length (um): 115 105 125 Width (um): 40 38 42 Cantilever Thickness (um): 0.58 0.53 0.63 Cantilever Material: Nitride Reflex Coating: Au Geometry: Paddle Tip Specification
Nom Min Max Tip Height (h): 28
