HRMAS Rotor Insert Kit

For HRMAS applications, 4 mm rotor with different geometries are available which have been designed to confine the solvent and to optimize the shimmability.

Rotors are available in two versions:

• 50 μl cylindrical sample volume for highest sensitivity
• 12 μl spherical sample volume for highest B1 homogeneity and minimal temperature gradients in the sample.

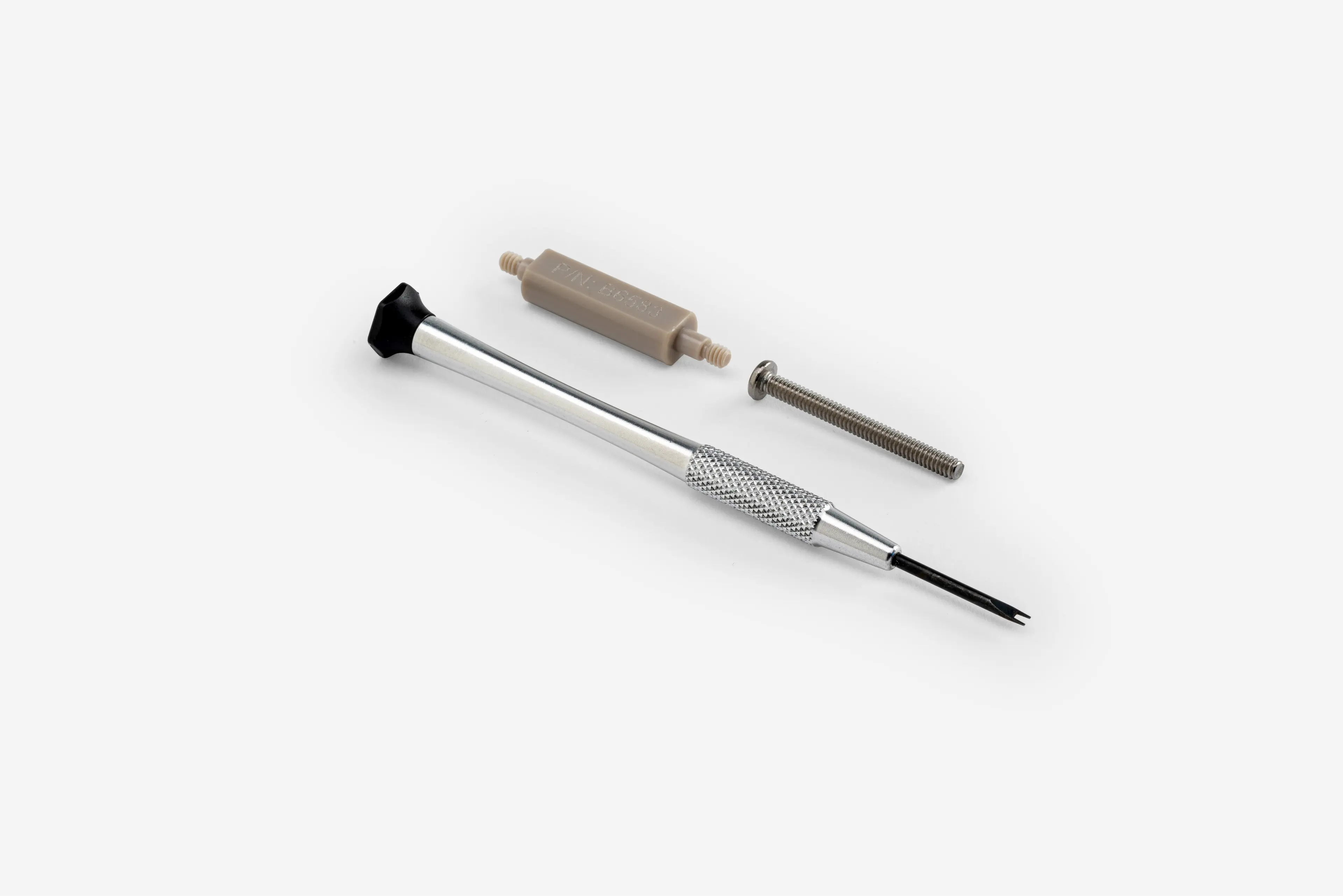

Thanks to the special inserts and a dedicated positioning tool, the sample volume can be exactly controlled and positioned at the center of the NMR coil. Ventilation holes in the inserts facilitate the preparation of the rotor, and sealing screws prevent the spillage of the sample and secure the insert.

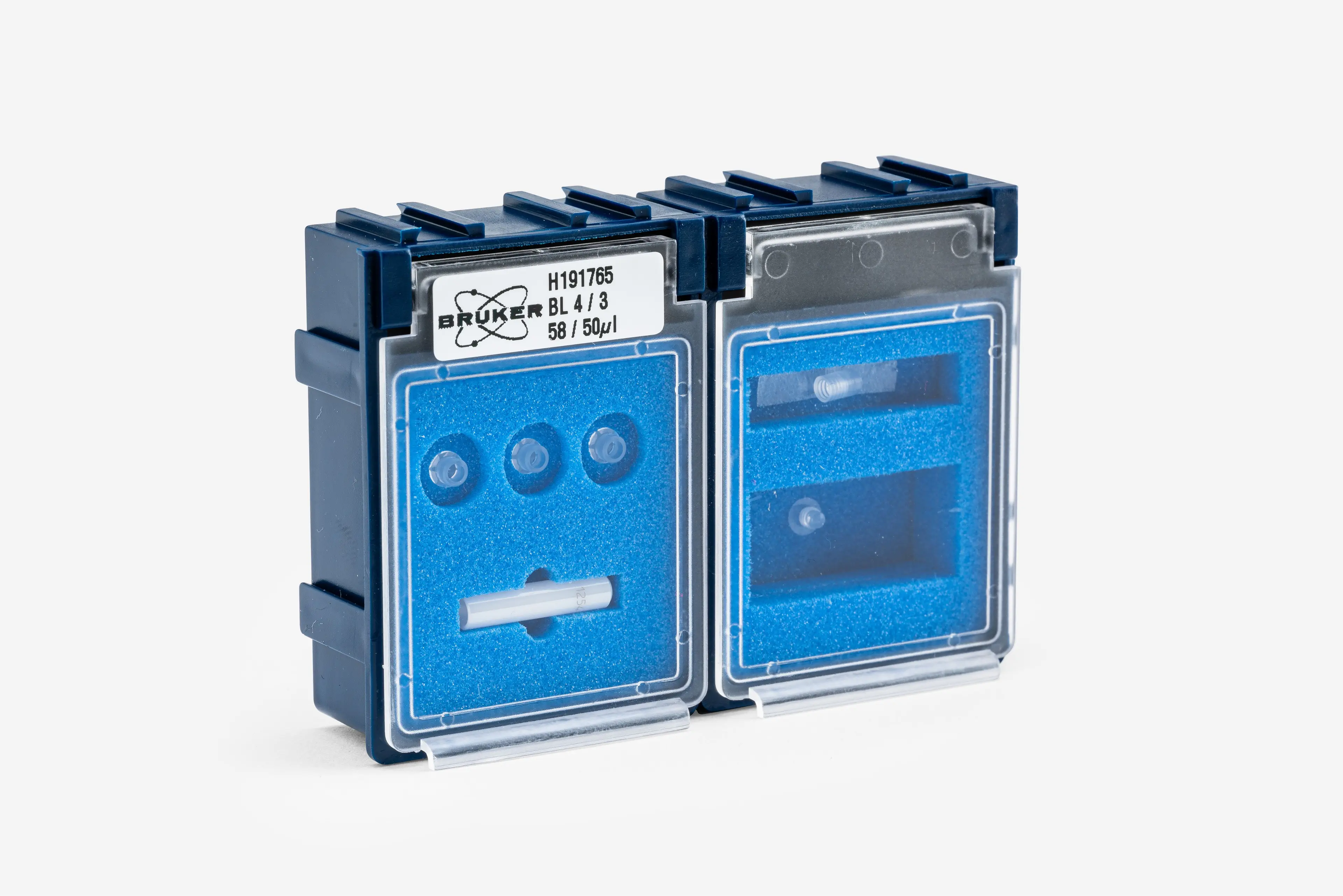

Each HRMAS Rotor Insert kit includes:

• 1x Zirconia Blind-Bore (closed) Rotor
• 3x Kel-F Drive Caps
• 1x Volume Reduction Insert
• 1x Sealing Thread

For your convenience the below table reports the corresponding HRMAS Insert Kit.
