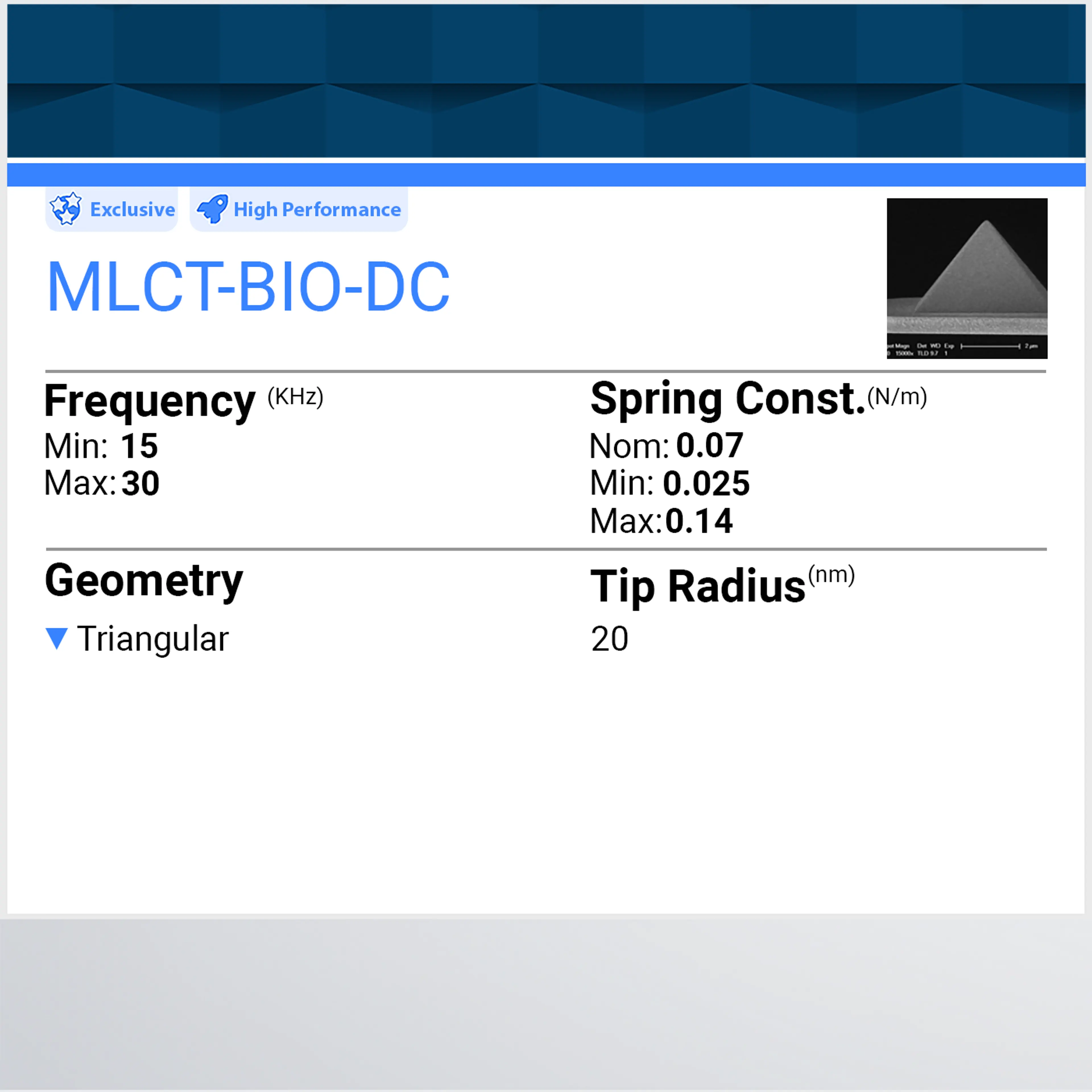

MLCT-BIO-DC
Bruker BNS
Part No:MLCT-BIO-DC-1PK
Variation
$605.00
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations

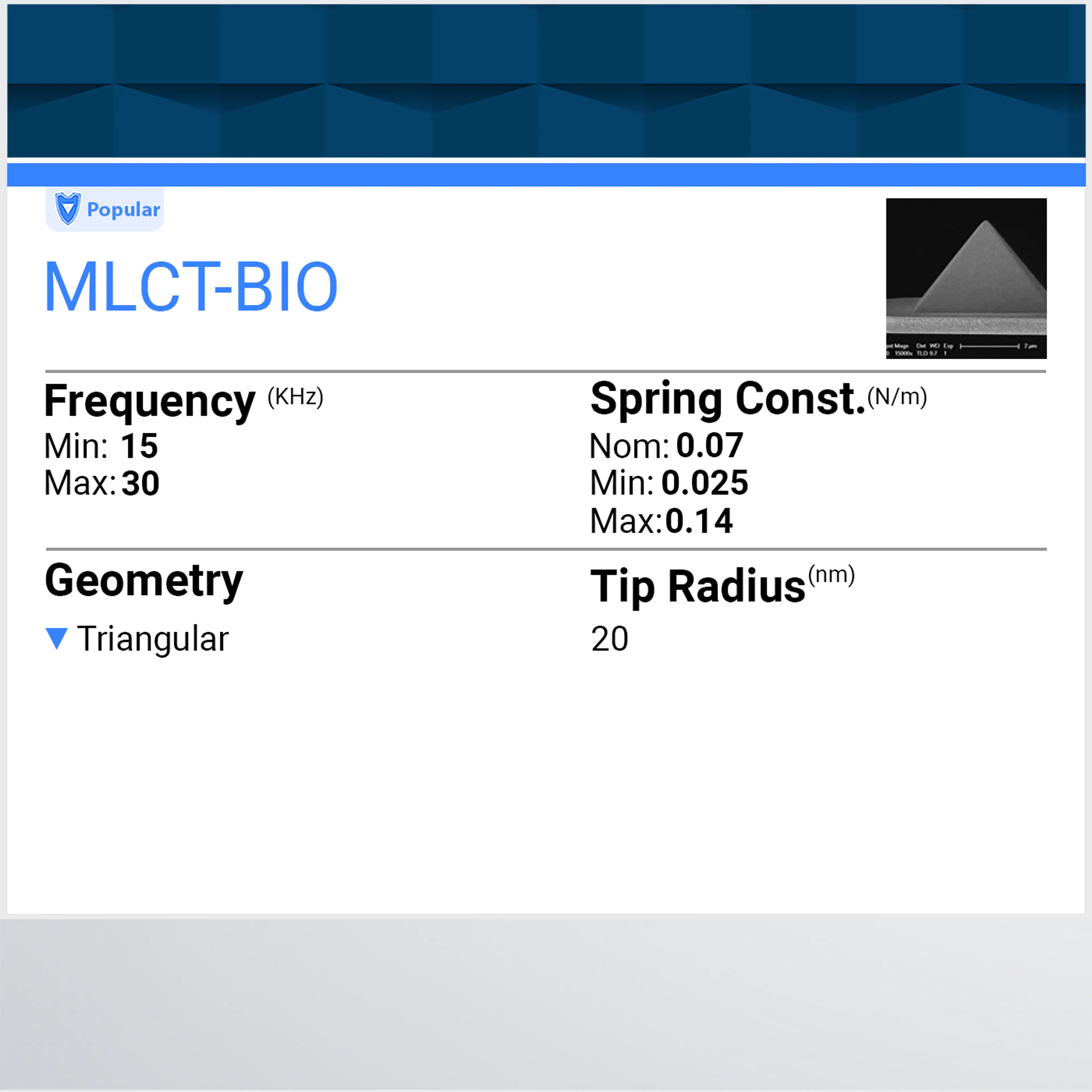

Bruker's line of MLCT-BIO high-quality, performance probes set the industry standard for imaging in fluid and force spectroscopy of biological samples. MLCT-BIO incorporates a larger tip radius and apex angle for consistent cell imaging, and has a proprietary design to improve the success rate of force pulling experiments. MLCT-BIO-DC is a low thermal sensitivity version of the probe. These drift-compensated probes have a small laser-reflection enhancing gold pad, constrained to the distal end of the cantilever, to significantly reduce probe bending.
Quantity = 10 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 20 | 60 | |
| Frequency (KHz): | 22 | 15 | 30 |
| Spring Constant (N/m): | 0.07 | 0.025 | 0.14 |
| Length (um): | 175 | 170 | 180 |
| Width (um): | 22 | 17 | 27 |
| Cantilever Thickness (um): | 0.55 | 0.5 | 0.6 |
| Cantilever Material: | |||
| Reflex Coating: | Reflective Gold | ||
| Geometry: | Rectangular & Triangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 3.5 | 2.5 | 4.5 |
| Front Angle (FA): | 35 | 33 | 37 |
| Back Angle (BA): | 35 | 33 | 37 |
| Side Angle (SA): | 35 | 33 | 37 |
| Tip-side Coating: |
