MLNV
Bruker BNS
Part No:MLNV-1PK
Variation
$215.25
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Bruker's Value Line Nitride probe for force measurements on soft samples, gold reflex coating. 6 Levers with spring constants from 0.01 to 0.6N/m.
Quantity = 10 per pack

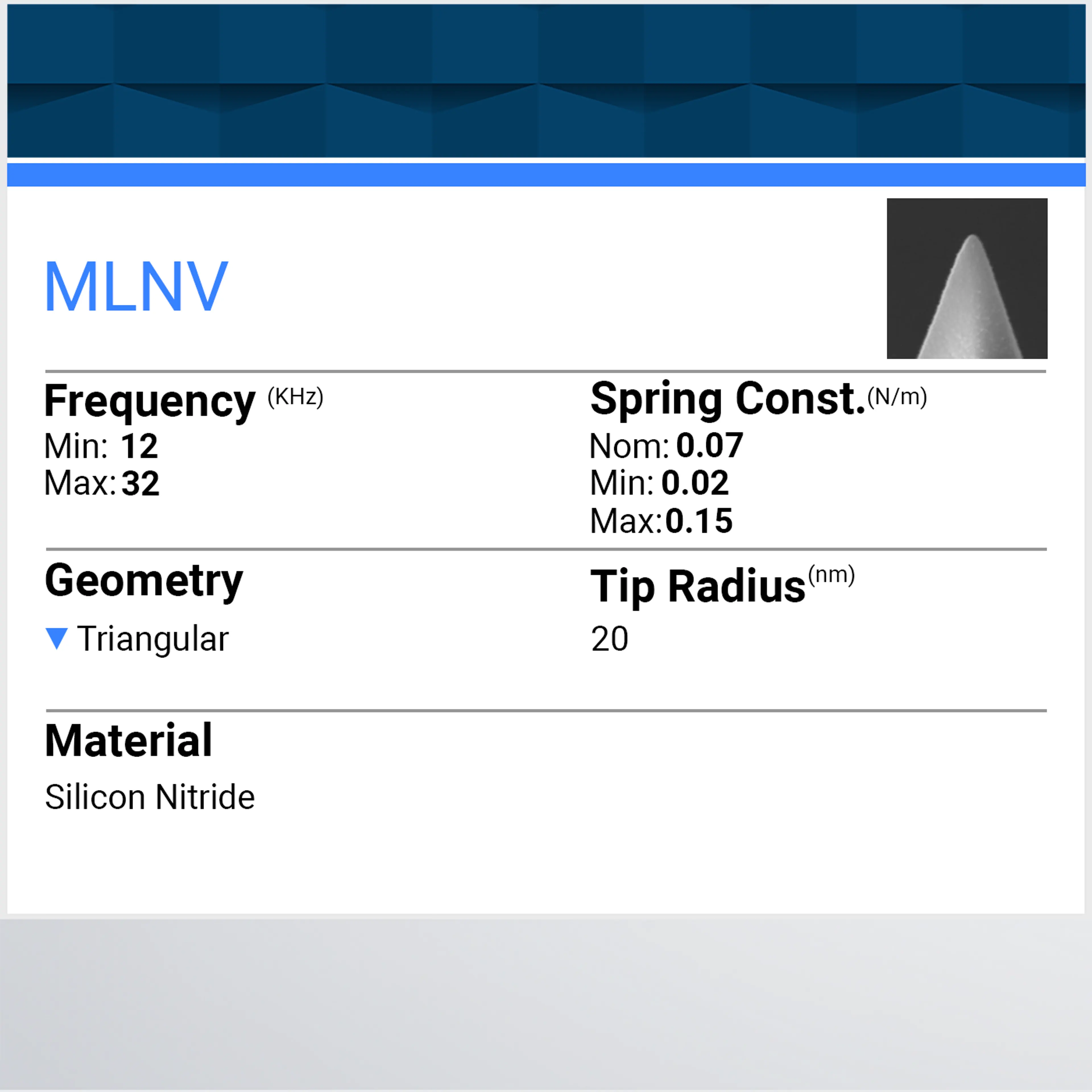

Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 20 | 70 | |
| Frequency (KHz): | 22 | 12 | 32 |
| Spring Constant (N/m): | 0.07 | 0.02 | 0.15 |
| Length (um): | 175 | 170 | 180 |
| Width (um): | 22 | 17 | 27 |
| Cantilever Thickness (um): | 0.55 | 0.50 | 0.60 |
| Cantilever Material: | SiN | ||
| Reflex Coating: | Reflective Gold | ||
| Geometry: | Rectangular & Triangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 5.25 | 2.5 | 8 |
| Front Angle (FA): | 15 | 12.5 | 17.5 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 17.5 | 15 | 20 |
