PDNISP
Description
Hand-crafted natural diamond Nanoindenting tip.
Mounted for the Dimension AFM.
Specific spring constant range can be requested as a special order for added cost.
Quantity = 1 per pack
Technical Data
-
Key specification

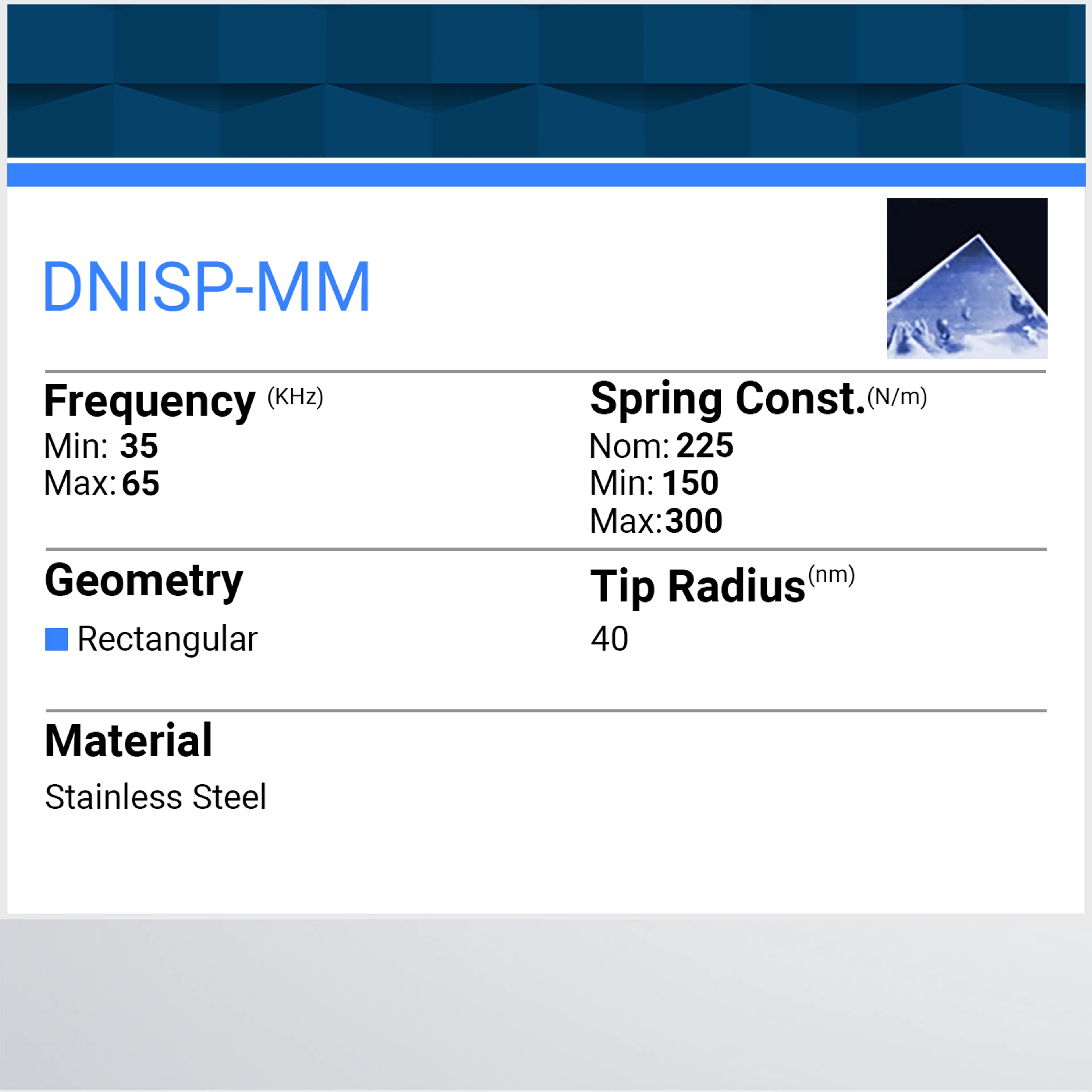

Nom Min Max Tip Radius (nm): 40 50 Frequency (KHz): 50 35 65 Spring Constant (N/m): 225 150 300 Length (um): 350 100 500 Width (um): 100 80 120 Cantilever Thickness (um): 13 11 15 Cantilever Material: Stainless Steel Geometry: Rectangular Tip Specification
Nom Min Max Tip Height (h): 50 Front Angle (FA): 55 53 57 Back Angle (BA): 35 33 37 Side Angle (SA): 51 49 53
