PFQNM-LC-V2
Description
Simply the best cell imaging probe for AFM: The Peak Force Quantitative NanoMechanical Live Cell Version 2! Our 2nd generation calibrated probe for high resolution cell imaging & quantifiable, artefact free mechanical mapping on live cells and other bio samples. A probe proven to work in PeakForce Tapping, QI Mode, Force Volume as well as Tapping. Featuring:
Controlled 70 nm end radius: perfect for imaging and indenting.
Vibrometer Pre-calibrated k = 0.1 N/m: suitable for many bio samples types.
19 µm tall “post”: Allows imaging of tall cells while help avoid squeeze film & tip shank artefacts.
11 degree compensated tip: for perfect orthogonal tip-sample interaction.
Quantity = 5 per pack

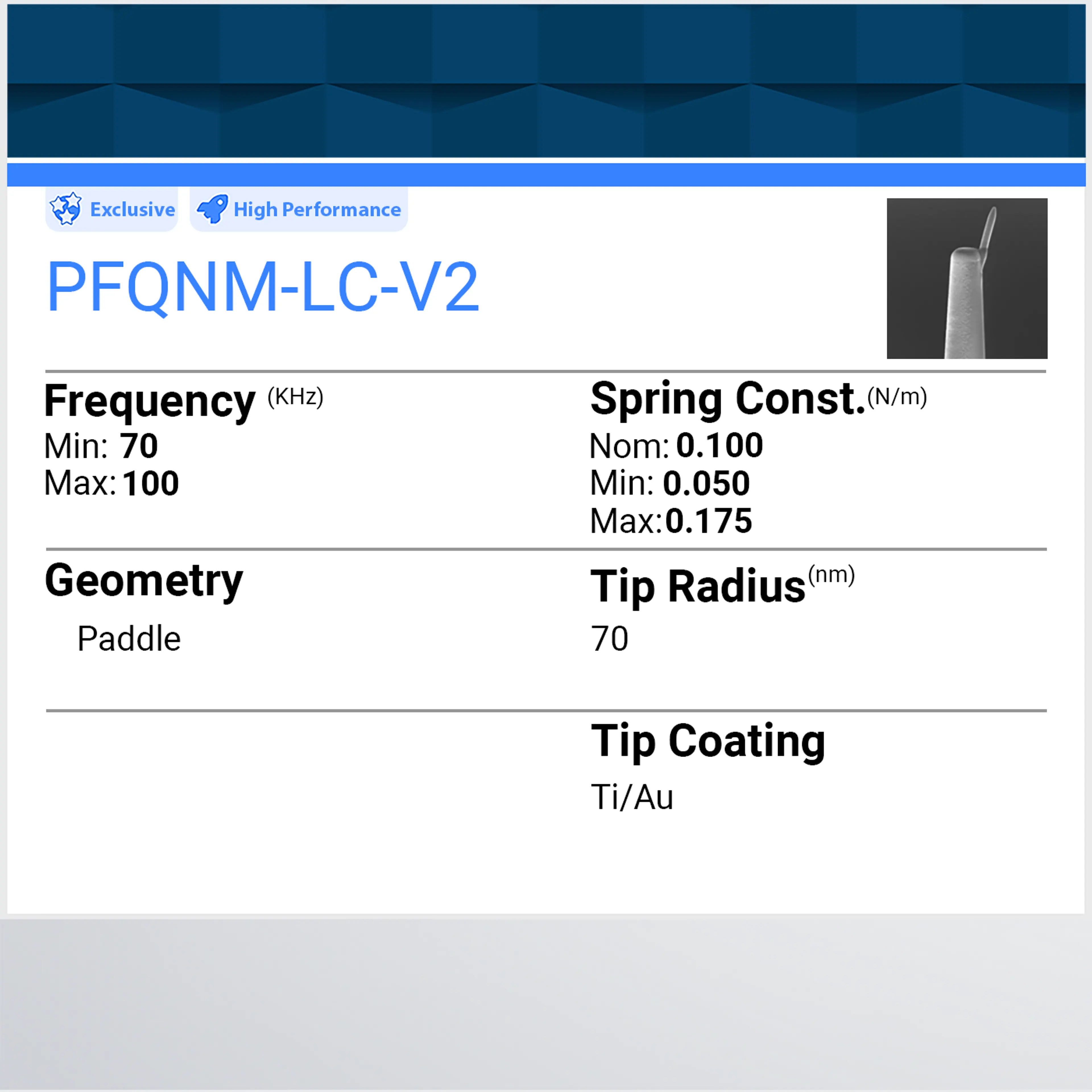

Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 70 85 Frequency (KHz): 85 70 100 Spring Constant (N/m): 0.1 0.05 0.175 Length (um): 52 49 55 Width (um): 20 18 25 Cantilever Thickness (um): 0.345 0.317 0.373 Reflex Coating: Ti/Au Geometry: Paddle Tip Specification
Nom Min Max Tip Height (h): 18 Tip-side Coating: Ti/Au
