PFMFM-LM
Description
Bruker’s new PFMFM-LM probe is designed for Peak Force based MFM. The probe offers ~2.5X the sensitivity of our MESP-LM-V2 probe for better lateral resolution and higher contrast MFM images. The PFMFM-LM magnetic coating has a nominal coercivity of <400Oe (medium/low), and a magnetic moment of 0.3e-13 EMU (low).
Quantity = 10 per pack

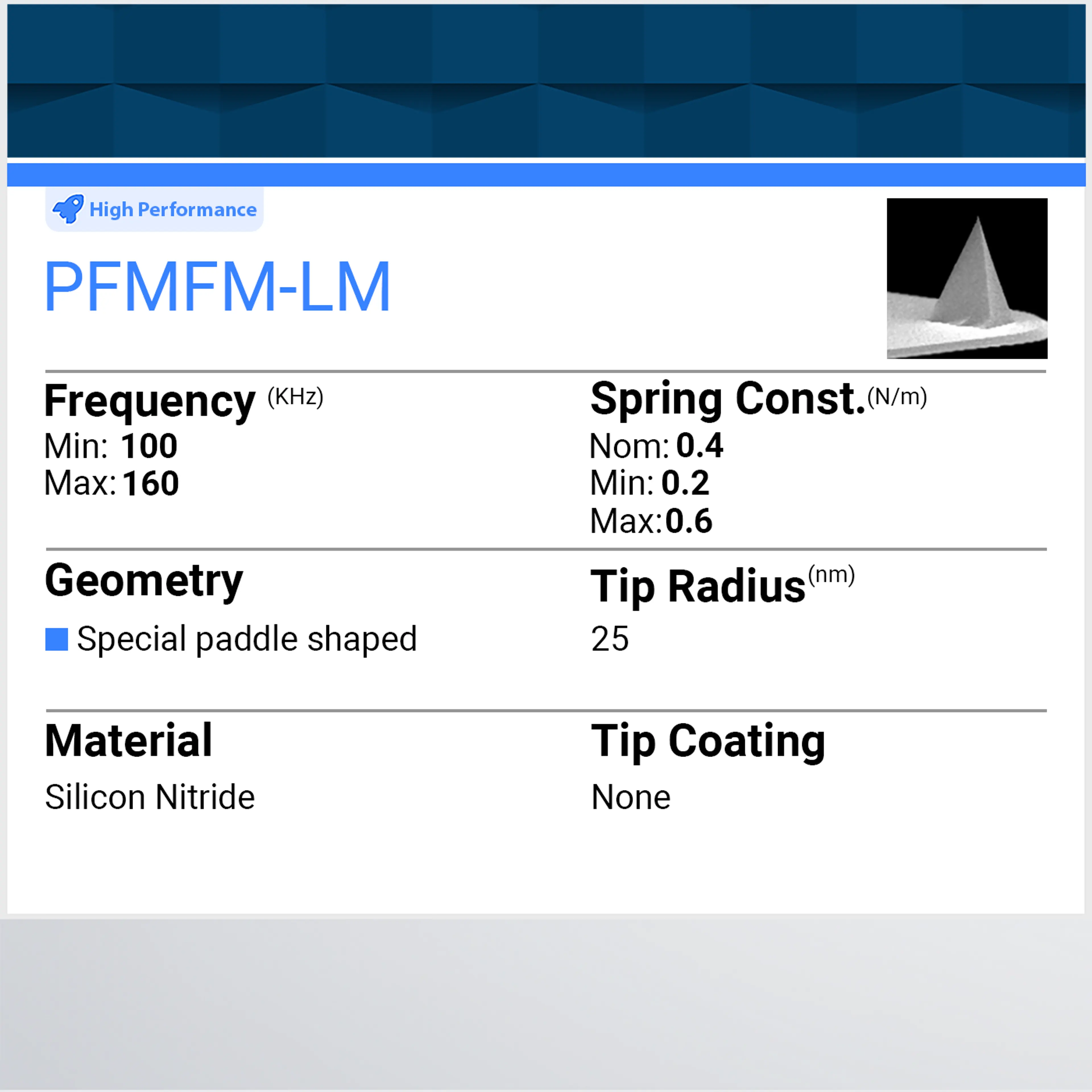

Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 25 35 Frequency (KHz): 130 100 160 Spring Constant (N/m): 0.4 0.2 0.6 Length (um): 60 55 65 Width (um): 30 27 33 Cantilever Thickness (um): 500 470 530 Cantilever Material: SiN Reflex Coating: Al Geometry: Paddle
