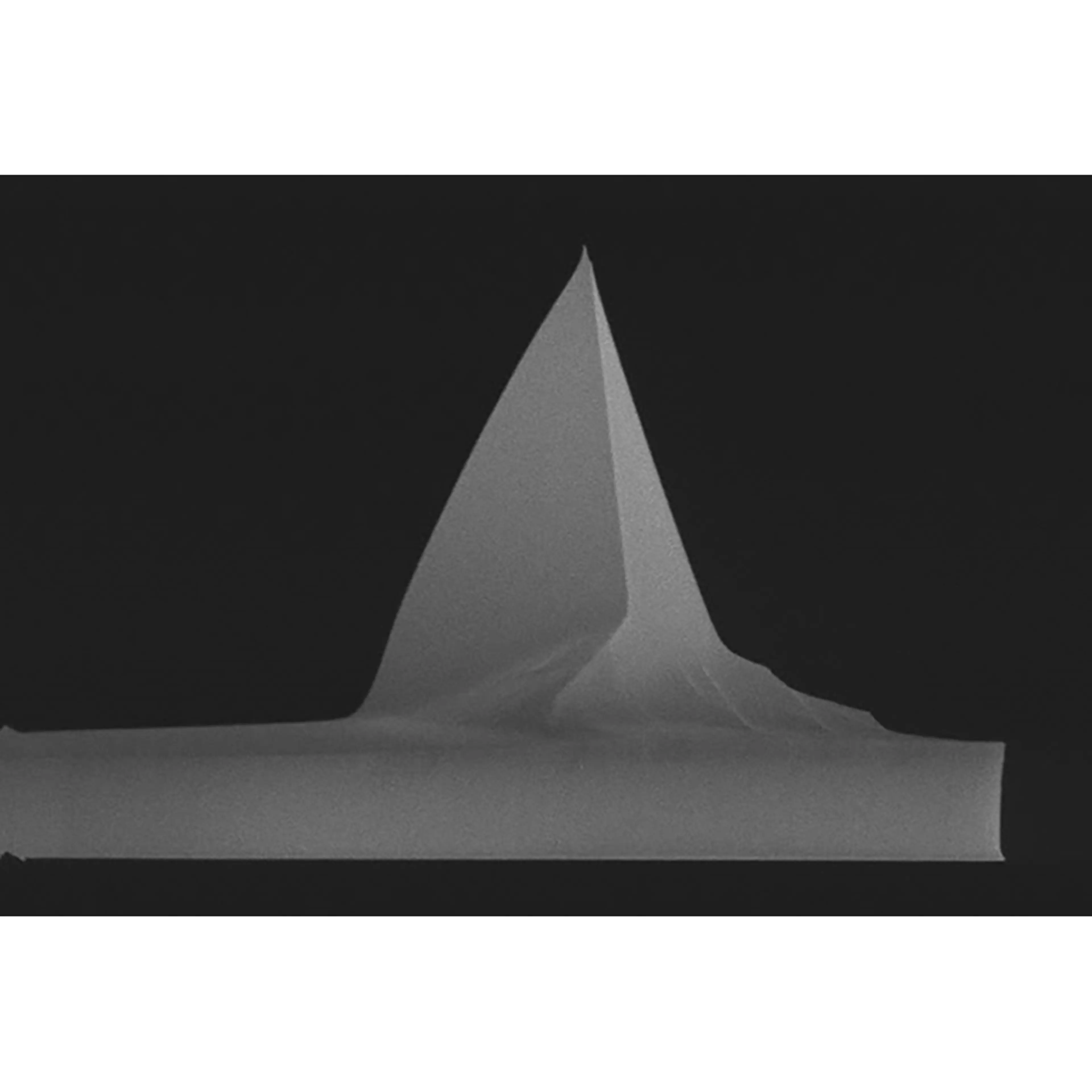

MESP-V2
Bruker BNS
Part No:MESP-V2-1PK
Variation
$715.00
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Standard Moment MFM Probes on improved V2 cantilever with a conductive coating that can often be an excellent and cost-effective solution for electrical and capacitance microscopy
Quantity = 10 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 35 | 50 | |
| Frequency (KHz): | 75 | 50 | 100 |
| Spring Constant (N/m): | 3 | 1.5 | 6 |
| Length (um): | 225 | 235 | 215 |
| Width (um): | 35 | 33 | 37 |
| Cantilever Thickness (um): | 2.8 | 2.05 | 3.55 |
| Cantilever Material: | Si | ||
| Reflex Coating: | Reflective Co/Cr | ||
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12.5 | 10 | 15 |
| Front Angle (FA): | 25 | 22.5 | 27.5 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 20 | 17.5 | 22.5 |
| Tip-side Coating: | Magnetic |
