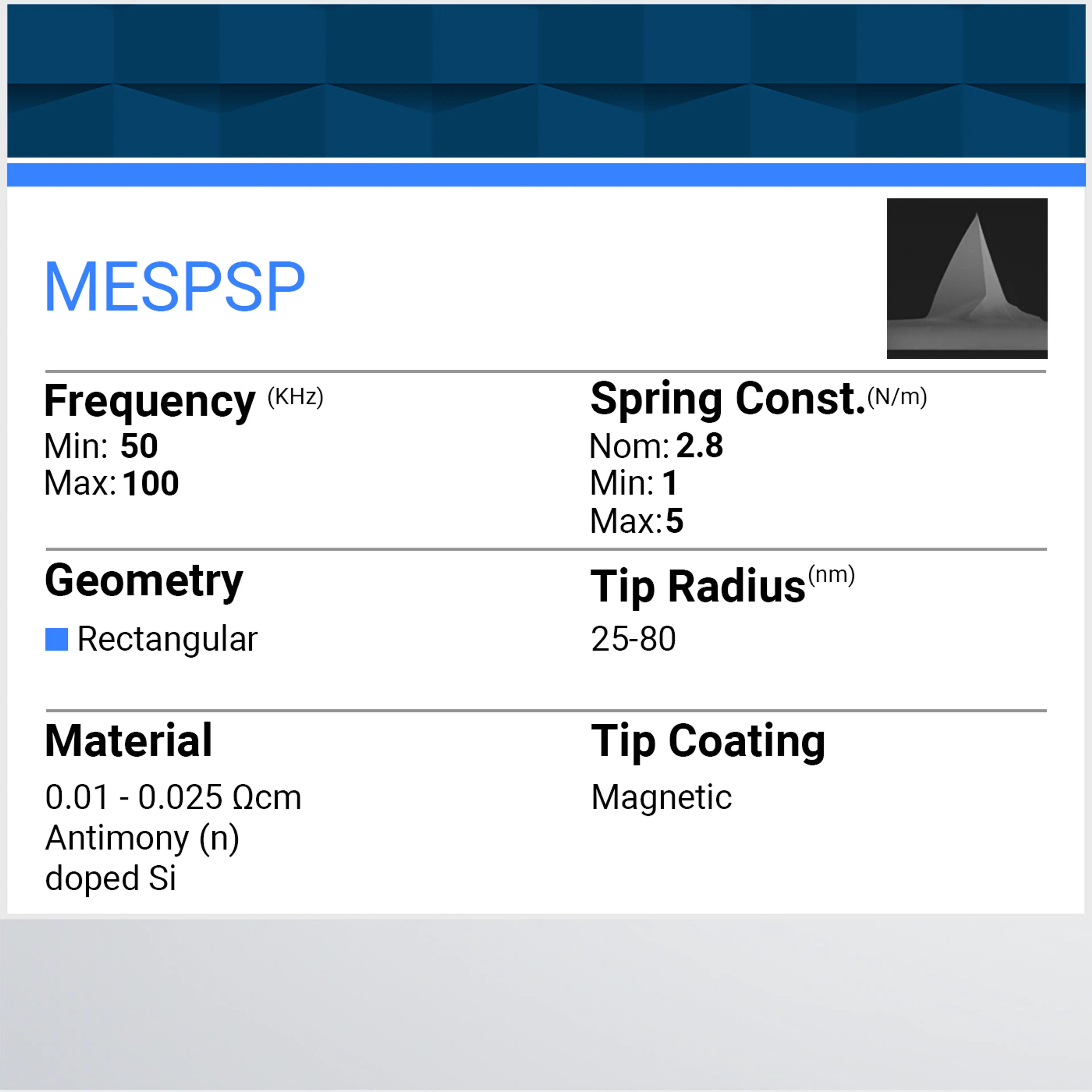

MESPSP
Description
A pack of Magnetic Probes:
MFM Probe Variety Pack
Contains 4 MESP-V2 probes, 3 MESP-LM-V2 probes, and 3 MESP-HM-V2 probes
Unmounted for all AFMs.
Quantity = 10 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 25 80 Frequency (KHz): 75 50 100 Spring Constant (N/m): 2.8 1 5 Length (um): 225 200 250 Width (um): 28 23 33 Cantilever Thickness (um): 2.75 2.0 3.5 Cantilever Material: Si Geometry: Rectangular Tip Specification
Nom Min Max Tip Height (h): 12.5 10 15 Front Angle (FA): 25 22.5 27.5 Back Angle (BA): 15 12.5 17.5 Side Angle (SA): 22.5 20 25 Tip-side Coating: Magnetic
