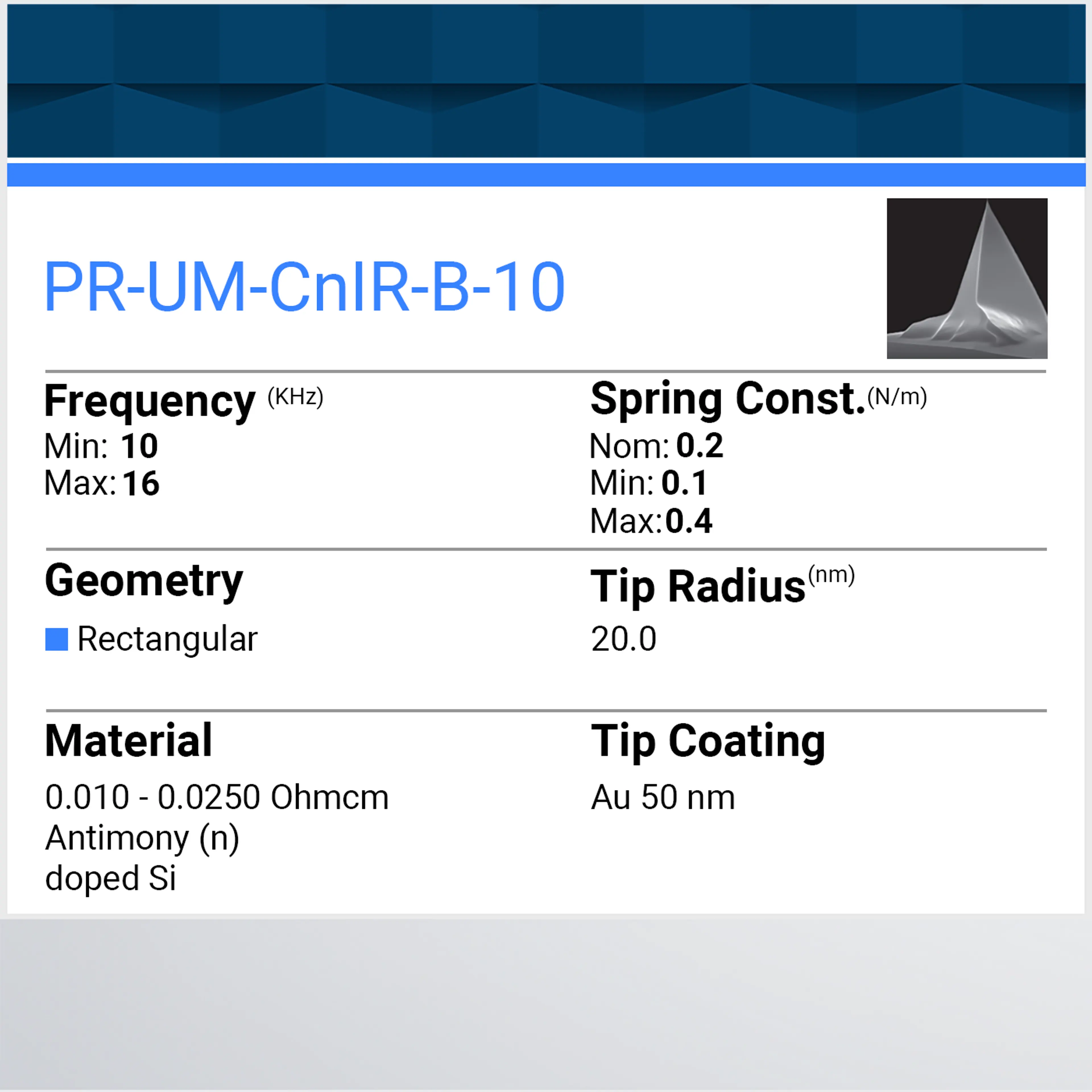

PR-UM-CnIR-B-10
Bruker BNS
Part No:PR-UM-CnIR-B-10-1PK
Variation
$590.00
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Bruker Contact mode probes for AFM-IR
Quantity = 10 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 20 | 35 | |
| Frequency (KHz): | 13 | 10 | 16 |
| Spring Constant (N/m): | 0.2 | 0.1 | 0.4 |
| Length (um): | 450 | 430 | 470 |
| Width (um): | 50 | 45 | 55 |
| Cantilever Thickness (um): | 2 | ||
| Cantilever Material: | Si | ||
| Reflex Coating: | Au | ||
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12.5 | 10 | 15 |
| Front Angle (FA): | 25 | ||
| Back Angle (BA): | 15 | ||
| Side Angle (SA): | 22.5 | ||
| Tip-side Coating: | Au |
