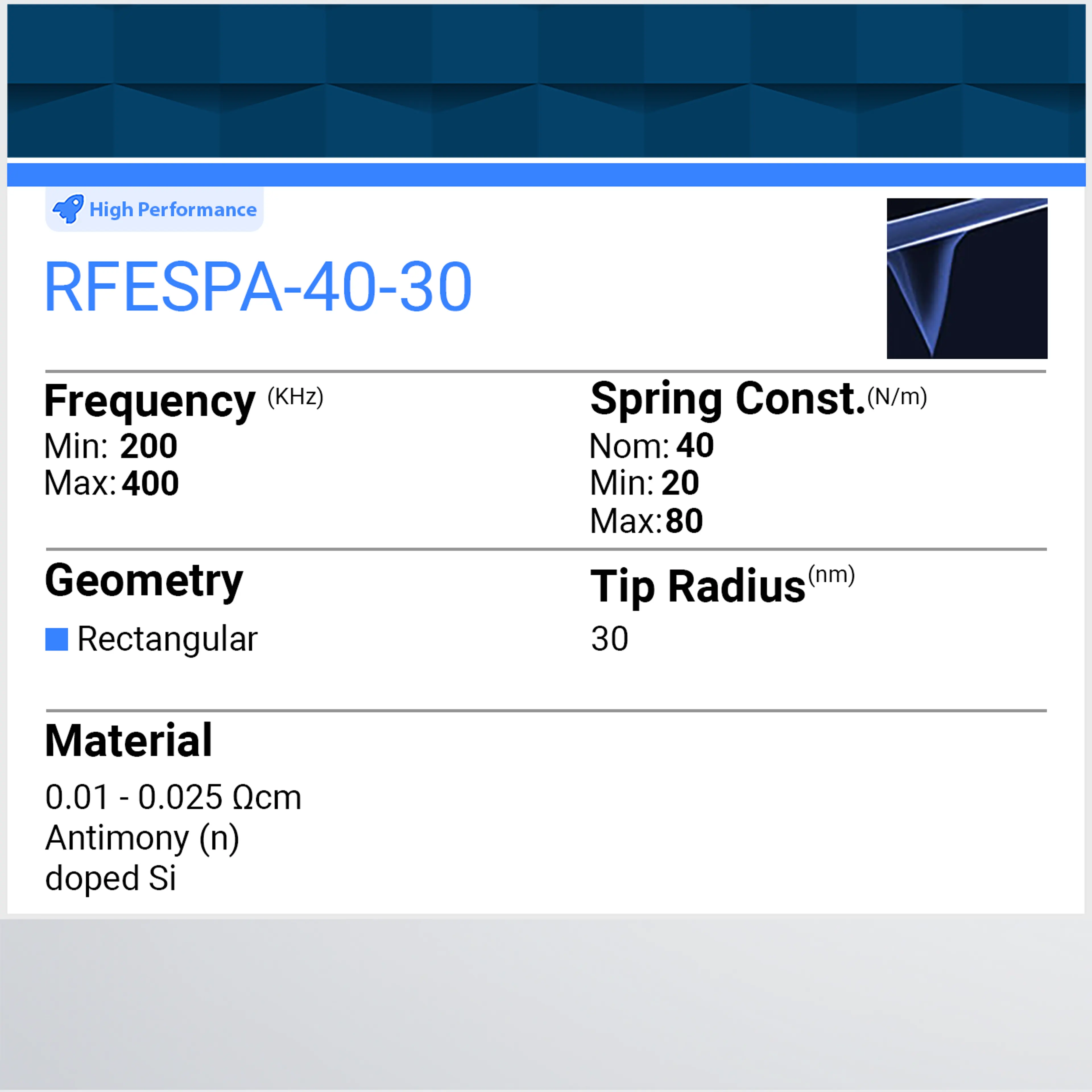

RFESPA-40-30
Bruker BNS
Part No:RFESPA-40-30
$572.25
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
RFESPA-40, SiN, k Certified, controlled radius
Quantity = 5 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 34 | 40 | |
| Frequency (KHz): | 40 | 10 | 70 |
| Spring Constant (N/m): | 0.9 | 0.35 | 2 |
| Length (um): | 225 | 215 | 235 |
| Width (um): | 40 | 38 | 42 |
| Cantilever Thickness (um): | 1.8 | 1.5 | |
| Cantilever Material: | Single Crystal Si | ||
| Reflex Coating: | |||
| Geometry: |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12 | 9.5 | 14.5 |
| Front Angle (FA): | 17.5 | 15 | 20 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 20 | 17.5 | 22.5 |
| Tip-side Coating: |
