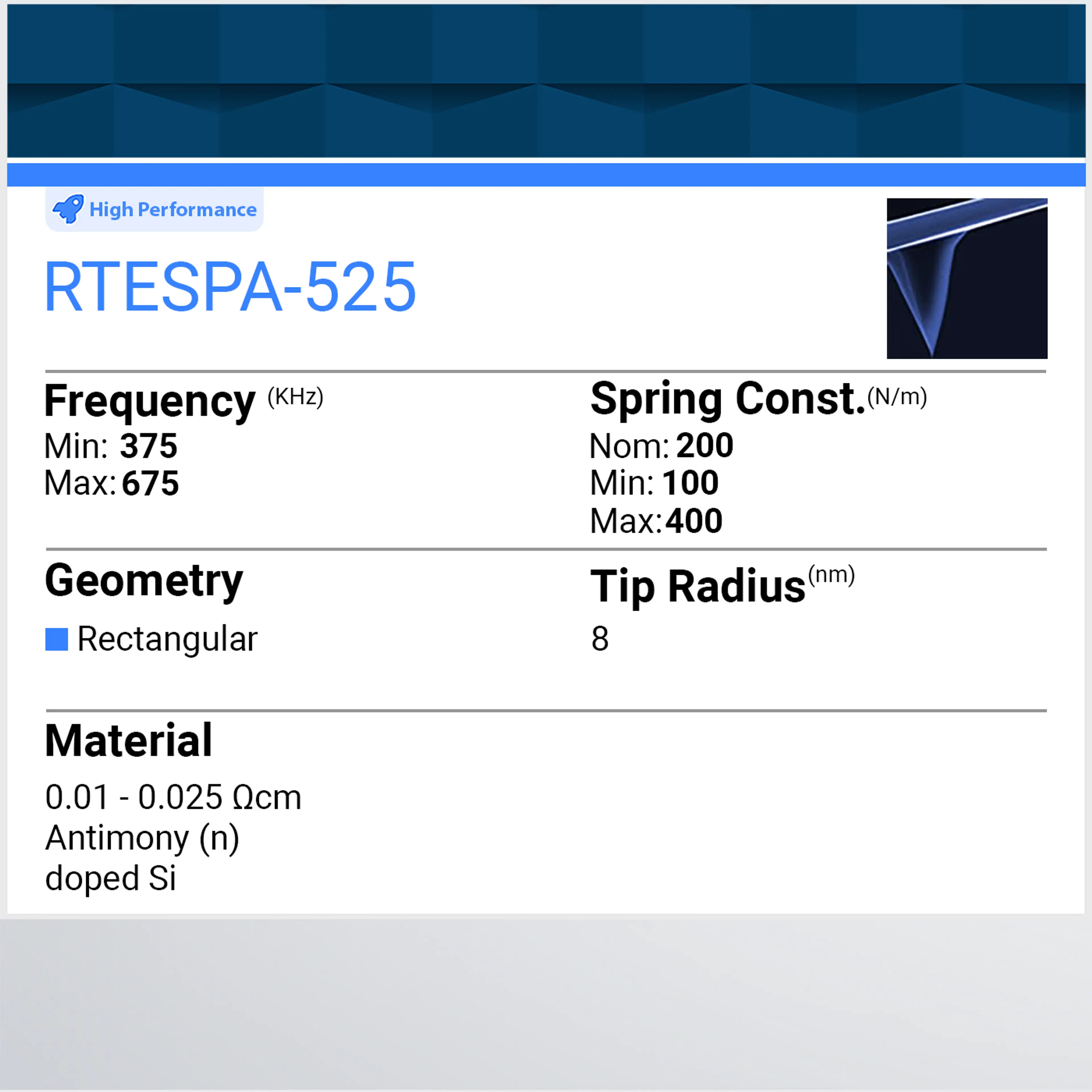

RTESPA-525-30
Description
- *Price and availability may vary by region due to local costs and regulations
RTESPA-525, SiN, k Certified, controlled radius, 5-PK
Quantity = 5 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 30 36 Frequency (KHz): 525 375 675 Spring Constant (N/m): 200 100 400 Length (um): 125 115 135 Width (um): 40 38 42 Cantilever Thickness (um): 5.75 4.75 6.75 Cantilever Material: Si Reflex Coating: Reflective Aluminum Geometry: Rectangular Tip Specification
Nom Min Max Tip Height (h): 12.5 10 15 Front Angle (FA): 15 13 17 Back Angle (BA): 25 23 27 Side Angle (SA): 17.5 15.5 19.5
