RTESPA-300-125
Description
- *Price and availability may vary by region due to local costs and regulations
RTESPA-300, SiN, k Certified, controlled radius
Quantity = 5 per pack
Technical Data
-
Key specification

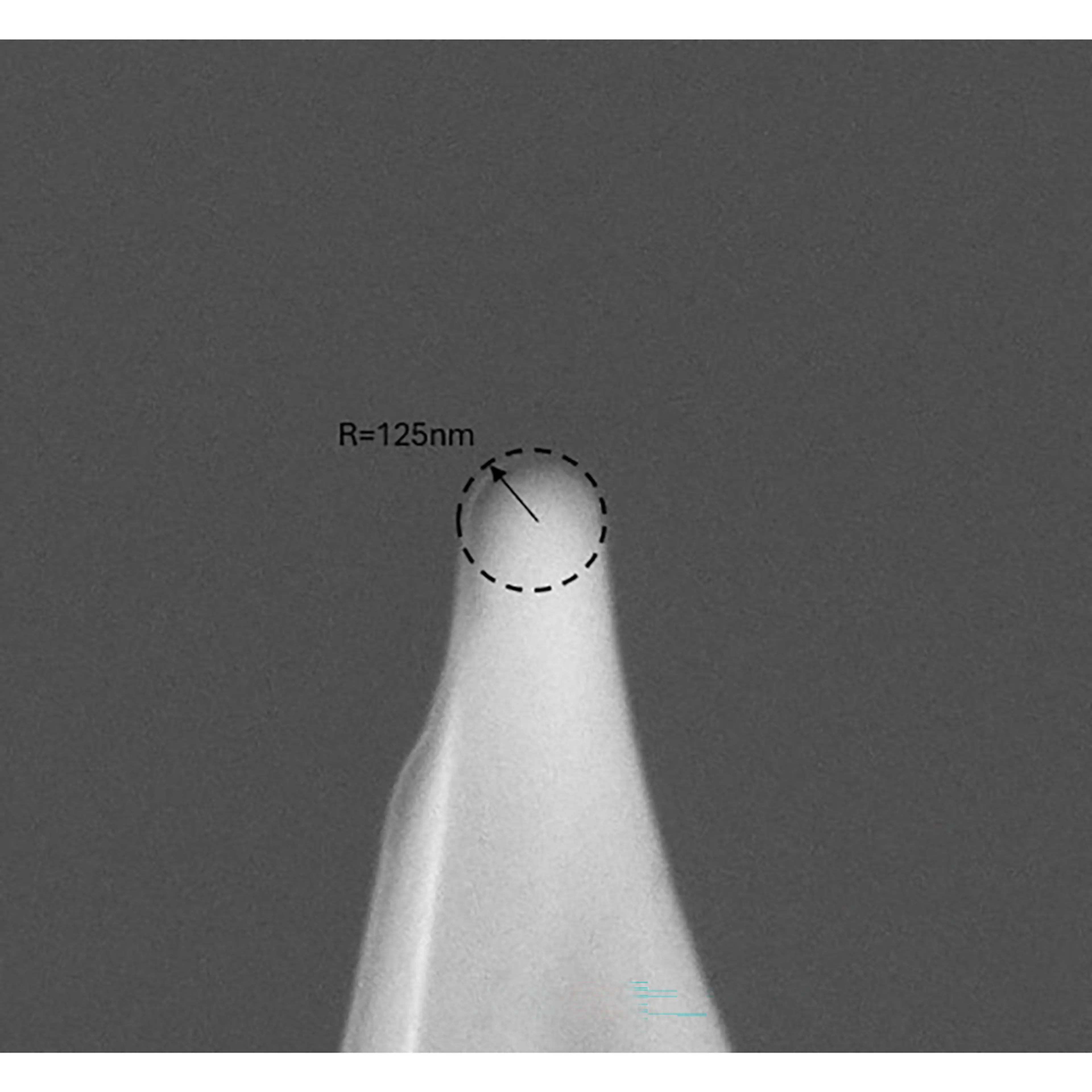

Nom Min Max Tip Radius (nm): 125 138 Frequency (KHz): 300 200 400 Spring Constant (N/m): 40 20 80 Length (um): 125 115 135 Width (um): 40 38 32 Cantilever Thickness (um): 3.4 1.5 Cantilever Material: Single Crystal Si Reflex Coating: Geometry: Tip Specification
Nom Min Max Tip Height (h): 12 9.5 14.5 Front Angle (FA): 17.5 15 20 Back Angle (BA): 25 22.5 27.5 Side Angle (SA): 20 17.5 22.5 Tip-side Coating:
