RTESPA-150-125
Bruker BNS
Part No:RTESPA-150-125
$572.25
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
RTESPA-150, SiN, k Certified, controlled radius
Quantity = 5 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|

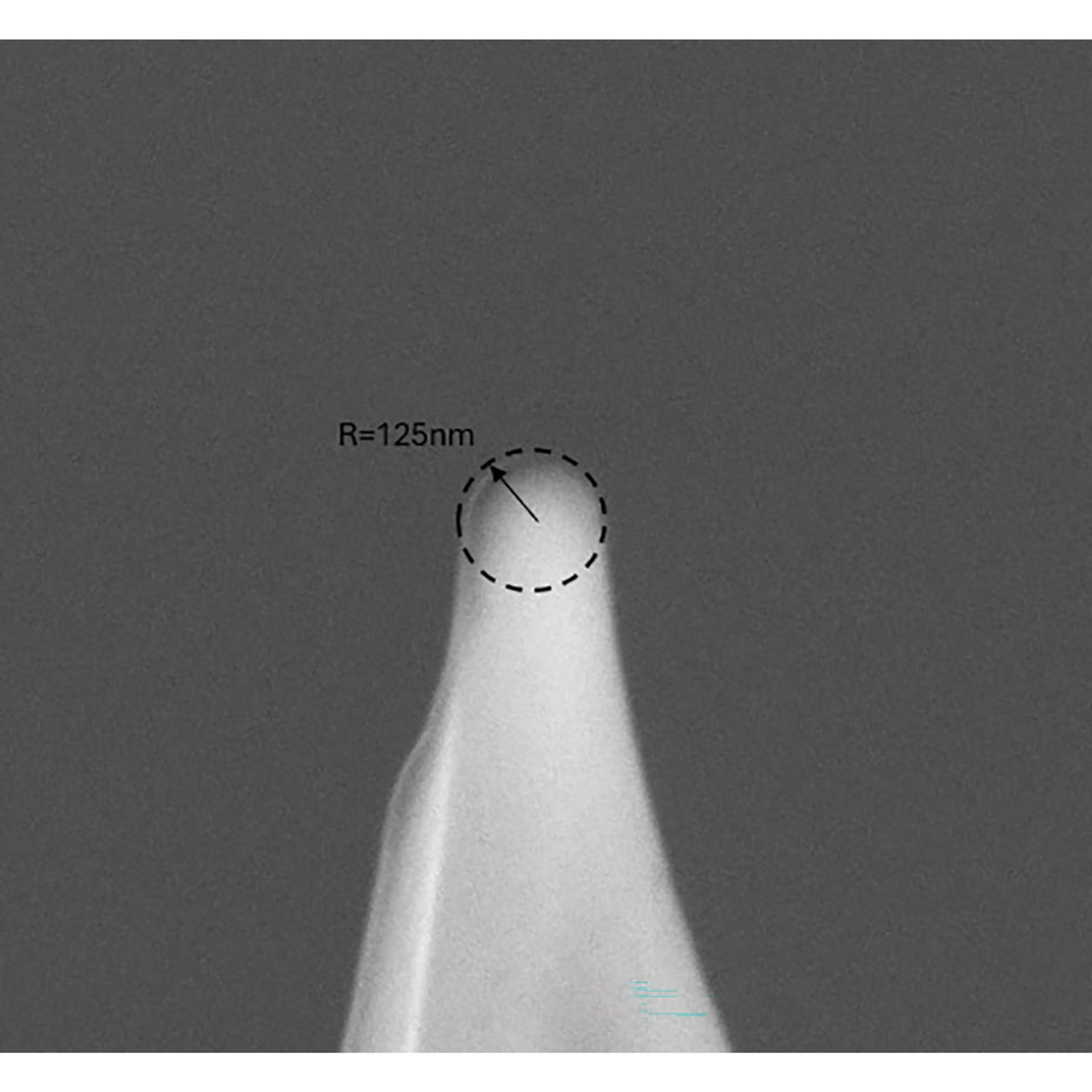

| Tip Radius (nm): | 125 | 138 | |
| Frequency (KHz): | 150 | 90 | 210 |
| Spring Constant (N/m): | 5 | 1.5 | 10 |
| Length (um): | 125 | 115 | 135 |
| Width (um): | 35 | 33 | 37 |
| Cantilever Thickness (um): | 1.75 | 1.5 | |
| Cantilever Material: | Single Crystal Si | ||
| Reflex Coating: | |||
| Geometry: |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12 | 9.5 | 14.5 |
| Front Angle (FA): | 17.5 | 15 | 20 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 20 | 17.5 | 22.5 |
| Tip-side Coating: |
