VITA-HE-NANOTA-200
Bruker BNS
Part No:VITA-HE-NANOTA-200
$2,535.75
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
VITA Nanoscale Thermal Analysis (nTA) Probes 200µm length cantilevers for TappingMode and contact mode operation, (Use only with high-efficiency model probe holder VITA-CH-MM-HE when on MultiMode)
Quantity = 5 per pack

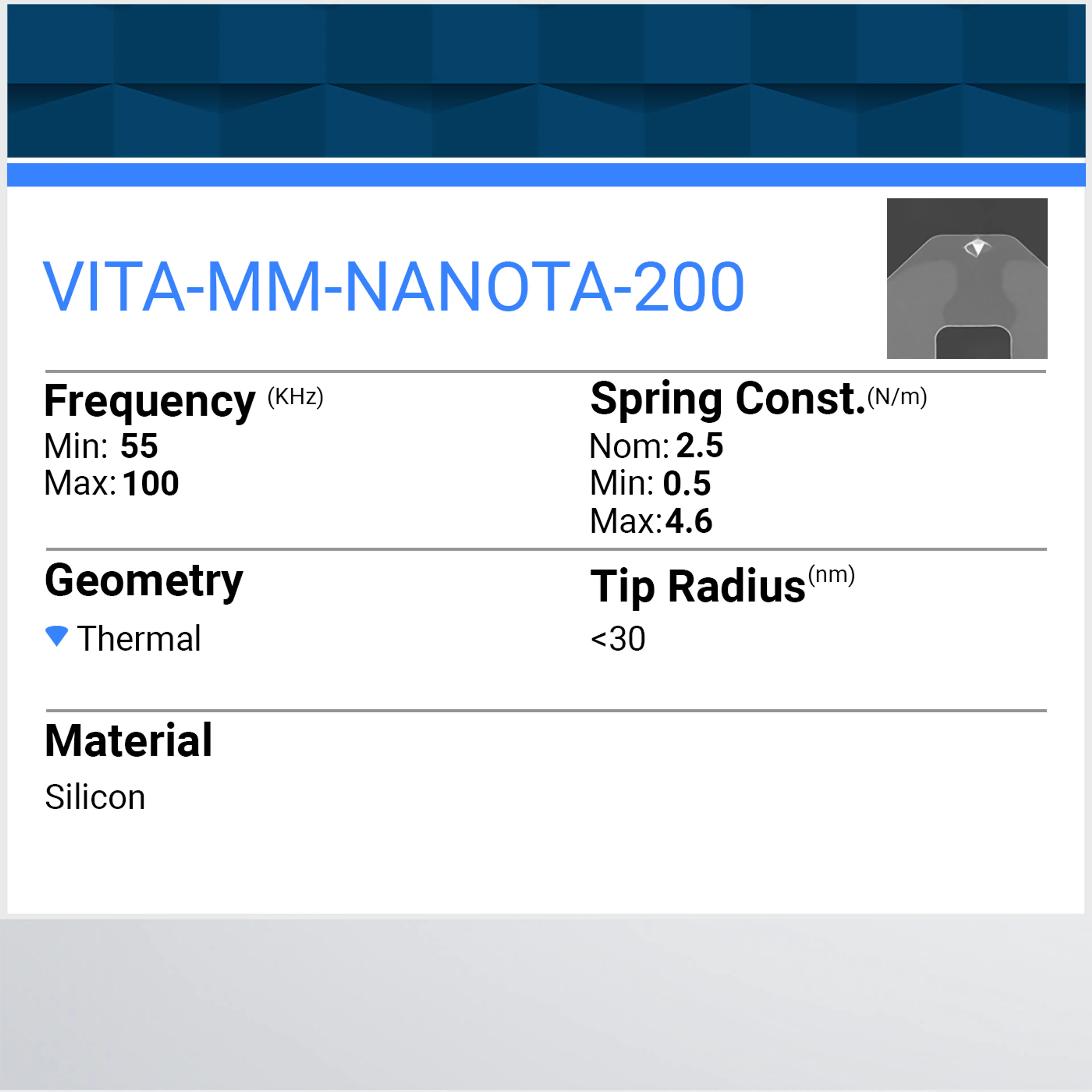

Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | <30 | ||
| Frequency (KHz): | 78 | 55 | 100 |
| Spring Constant (N/m): | 2.5 | 0.5 | 4.6 |
| Length (um): | 200 | ||
| Cantilever Thickness (um): | 2 | Cantilever Material: | Si |
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 4.5 | 3 | 6 |
