AD-2.8-P20
Description
- *Price and availability may vary by region due to local costs and regulations

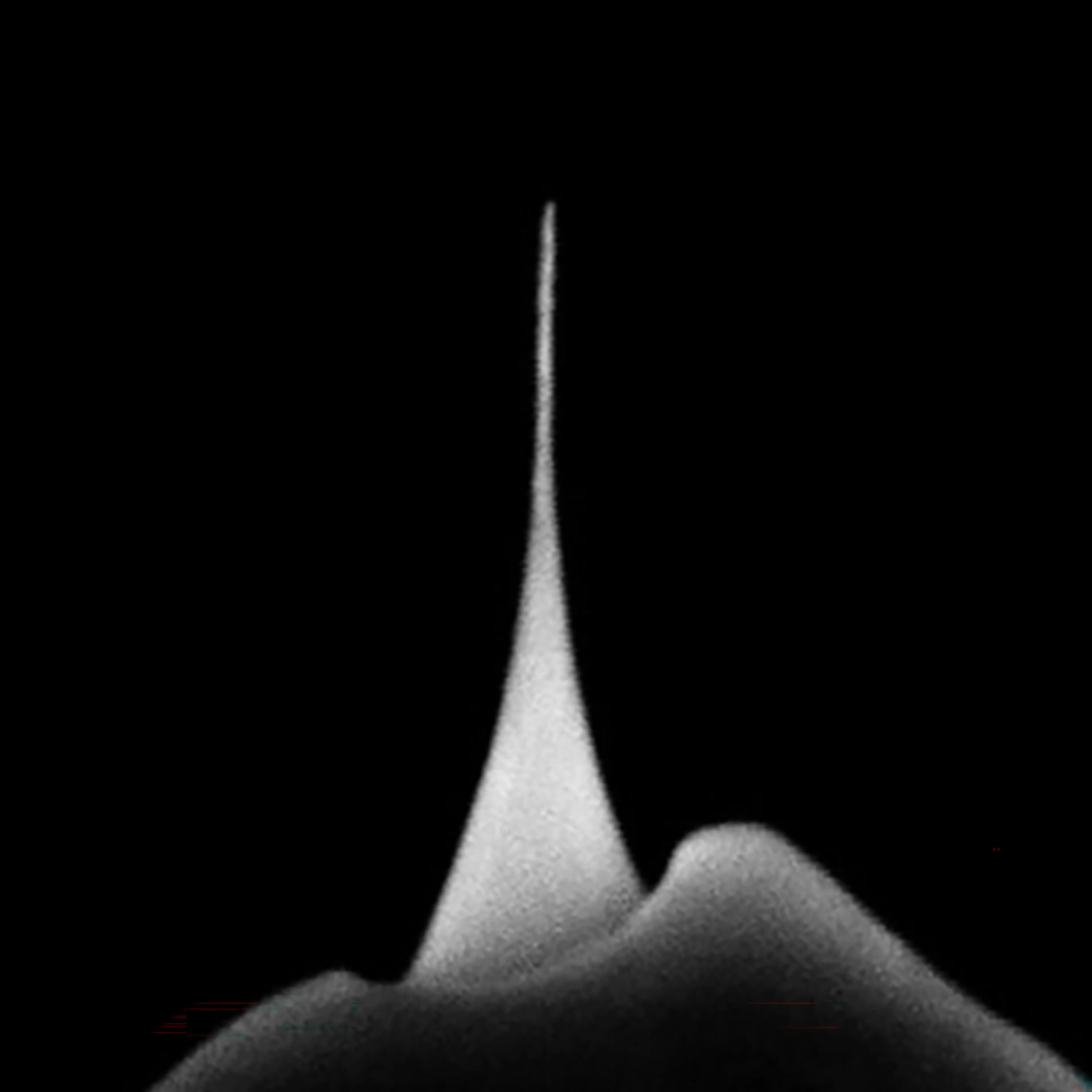

High aspect ratio probe for small scale structures. This model offers 100nm tall cylindrical shaped pillar tips with 20nm base diameter, combined with an intermediate 2.8N/m spring constant. As with all Adama probes, these are formed out of single crystal boron doped diamond and are wear resistant and conductive. Suitable for electrical characterization with PeakForce TUNA, TUNA, and CAFM.
Quantity = 5 per pack
Tip SpecificationL225um, W35um, K2.8N/m, F65kHz,R<20nm, 100nm tallTip Height (h): 12.5 +/- 2.5 um µmFront Angle (FA): 25+/-5degºBack Angle (BA): 15+/-5degºSide Angle (SA): 22.5+/-5degºCantilever SpecificationMaterial: Diamond pillar, 20nm-w, med-k, 5pkGeometry: RectangularCantilevers Number: 1Cantilever Thickness (Nom): 1.5umµmCantilever Thickness (RNG): 1-2umµmBack Side Coating: Reflective Au
