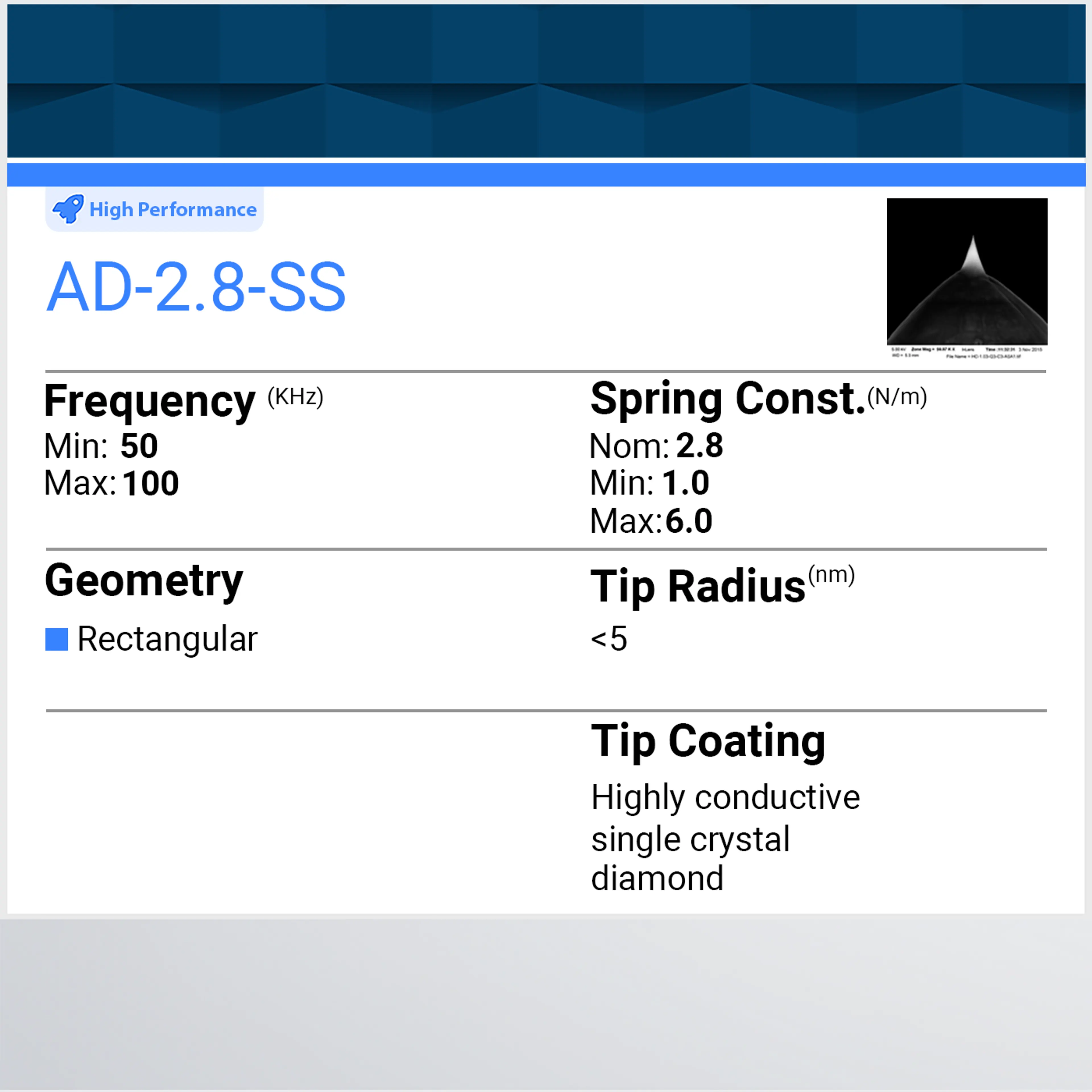

AD-2.8-SS
Bruker BNS
Part No:AD-2.8-SS
$1,500.00
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Super Sharp Conductive Single Crystal Diamond Probes, 2.8 N/m, 65 kHz, <5 nm ROC, 5-Pack
Quantity = 5 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | <5 | ||
| Frequency (KHz): | 65 | 50 | 100 |
| Spring Constant (N/m): | 2.8 | 1 | 6 |
| Length (um): | 225 | 215 | 235 |
| Width (um): | 35 | 30 | 40 |
| Cantilever Thickness (um): | 1.5 | 1.0 | 2.0 |
| Reflex Coating: | Reflective Au | ||
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12.5 | 10 | 15 |
| Front Angle (FA): | 25 | 20 | 30 |
| Back Angle (BA): | 15 | 10 | 20 |
| Side Angle (SA): | 22.5 | 17.5 | 27.5 |
| Tip-side Coating: | Highly conductive single crystal diamond |
