AD-2.8-P40
Description
- *Price and availability may vary by region due to local costs and regulations

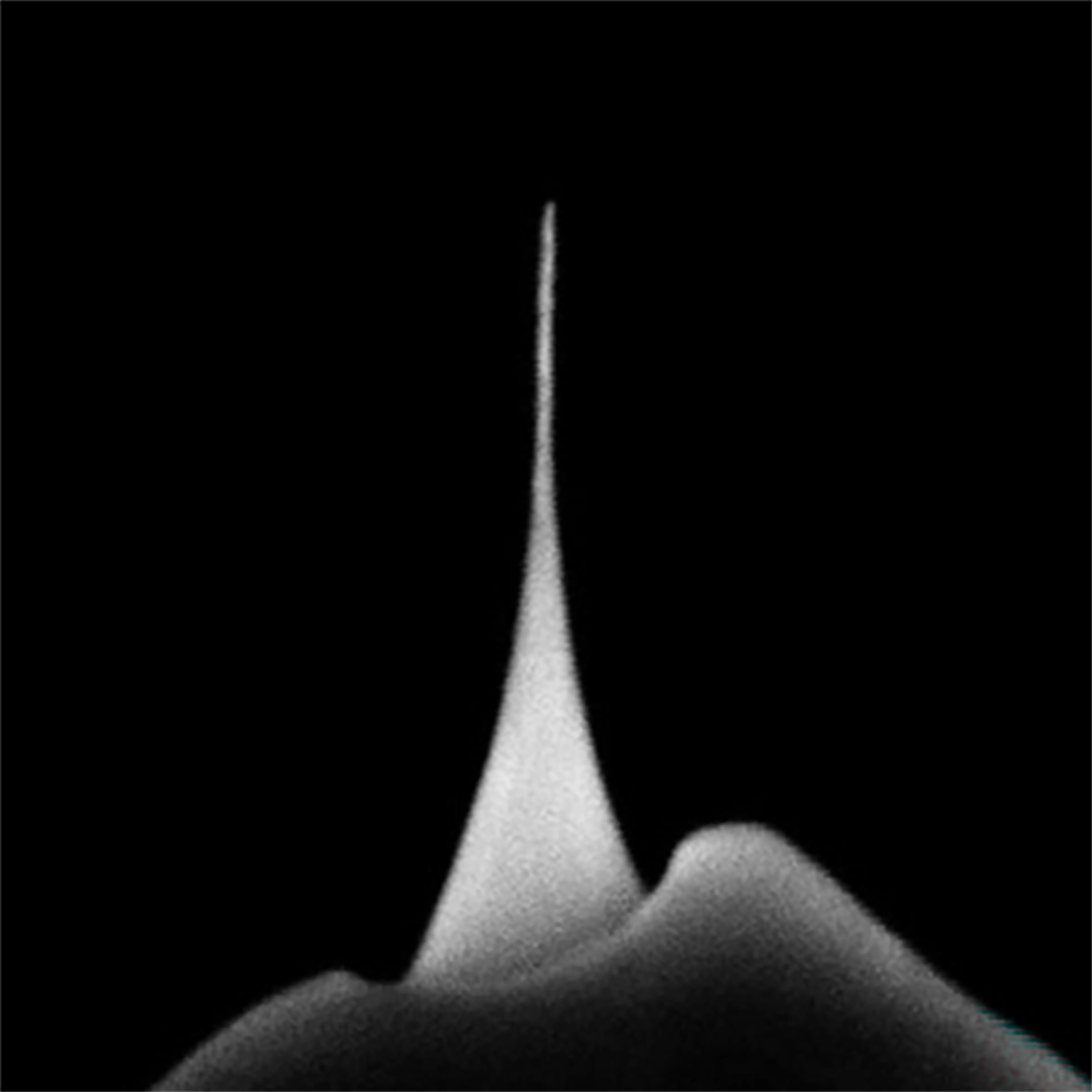

High aspect ratio probe for small scale structures. This model offers 100nm tall cylindrical shaped pillar tips with 40nm base diameter, combined with an intermediate 2.8N/m spring constant. As with all Adama probes, these are formed out of single crystal boron doped diamond and are wear resistant and conductive. Suitable for electrical characterization with PeakForce TUNA, TUNA, and CAFM.
Quantity = 5 per pack
Tip SpecificationTip Height (h): 12.5 +/- 2.5 µmFront Angle (FA): 25+/-5ºBack Angle (BA): 15+/-5ºSide Angle (SA): 22.5+/-5ºCantilever SpecificationMaterial: Diamond pillar, 40nm-w, med-k, 5pkGeometry: RectangularCantilevers Number: 1Cantilever Thickness (Nom): 1.5µmCantilever Thickness (RNG): 1-2µmBack Side Coating: Reflective Au
