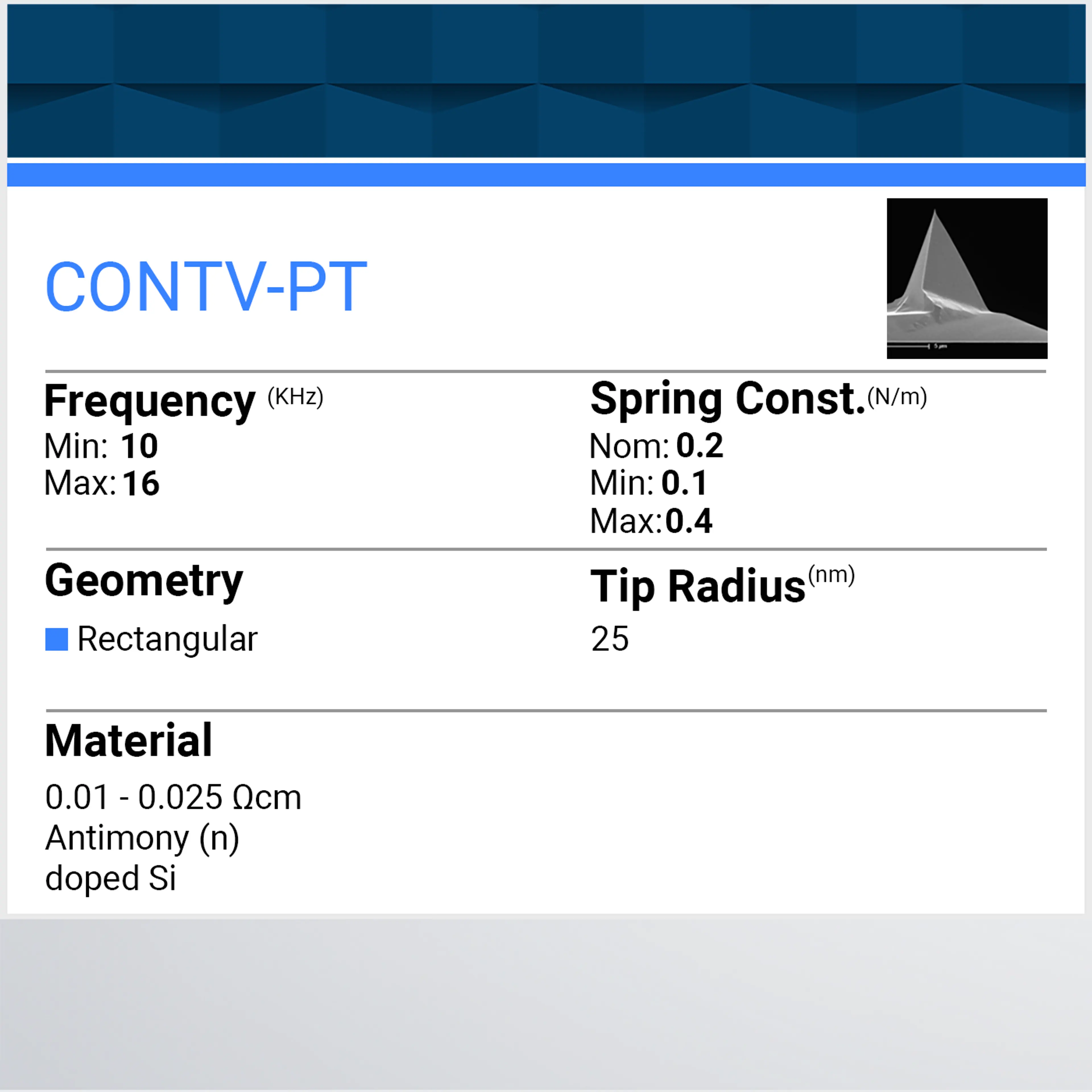

CONTV-PT
Description
This probe is part of Bruker's Value Line Probe for Electrical Characterization using Contact Mode in air.
Quantity = 10 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 25 Frequency (KHz): 13 10 16 Spring Constant (N/m): 0.2 0.1 0.4 Length (um): 450 405 495 Width (um): 50 45 55 Cantilever Thickness (um): 2 1.5 2.5 Cantilever Material: Si Reflex Coating: Reflective PtIr Geometry: Rectangular Tip Specification
Nom Min Max Tip Height (h): 12.5 10 15 Front Angle (FA): 25 22.5 27.5 Back Angle (BA): 15 12.5 17.5 Side Angle (SA): 22.5 20 25 Tip-side Coating: Conductive Ptlr
