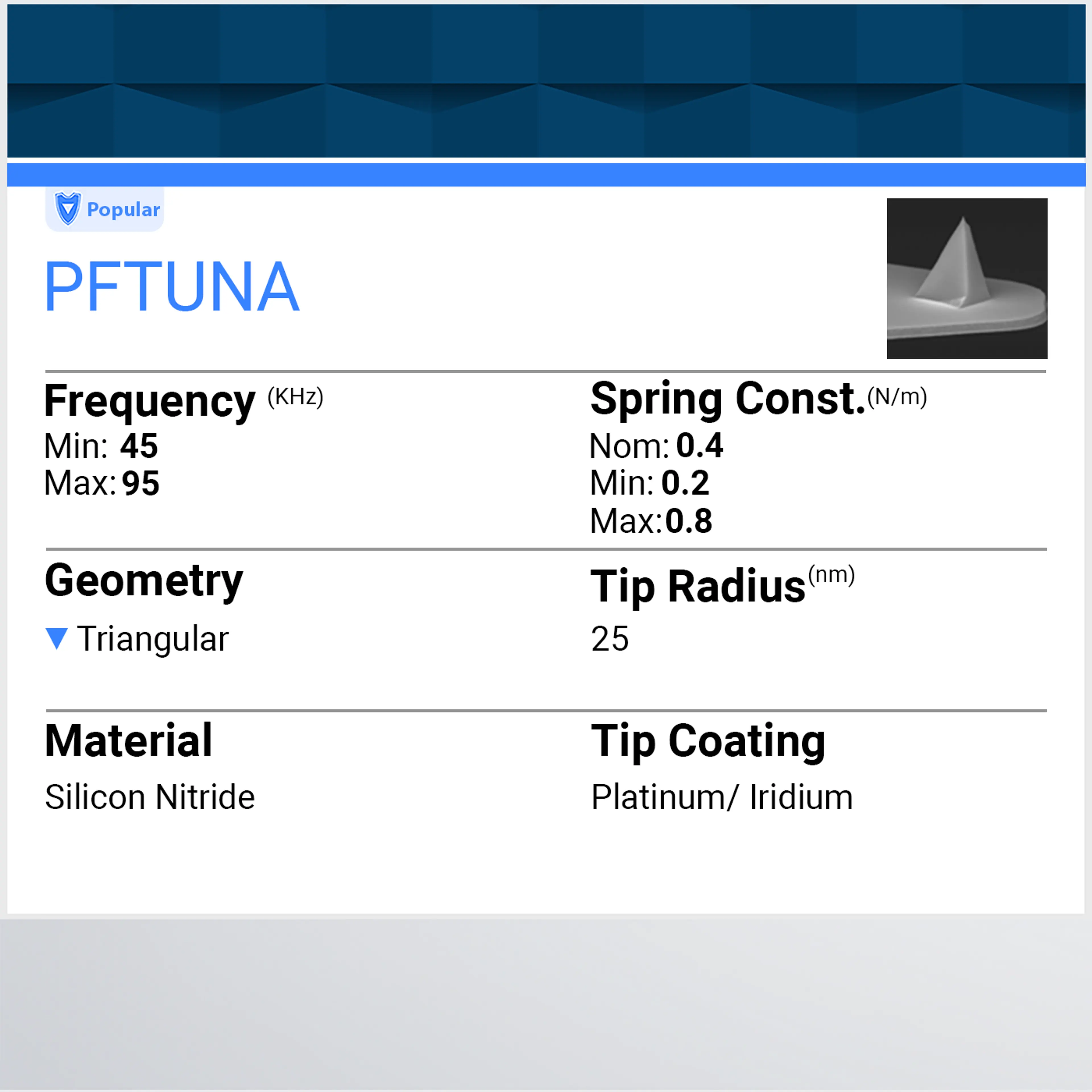

PFTUNA
Bruker BNS
Part No:PFTUNA-1PK
Variation
$514.50
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
PF TUNA probes combine the low spring constant and high sensitivity of a nitride cantilever with a sharp, electrically conductive tip. When used with Bruker's exclusive PeakForce TUNA mode, they enable an unprecedented level of high resolution electrical characterization on fragile samples.
Quantity = 10 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 25 | 35 | |
| Frequency (KHz): | 70 | 45 | 95 |
| Spring Constant (N/m): | 0.4 | 0.2 | 0.8 |
| Length (um): | 115 | 100 | 130 |
| Width (um): | 25 | 20 | 30 |
| Cantilever Thickness (um): | 0.65 | 0.6 | 0.7 |
| Cantilever Material: | SiN | ||
| Reflex Coating: | Reflective Pt/ Ir | ||
| Geometry: | Triangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 5.25 | 2.5 | 8 |
| Front Angle (FA): | 15 | 12.5 | 17.5 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 17.5 | 15 | 20 |
| Tip-side Coating: | Platinum/ Iridium |
