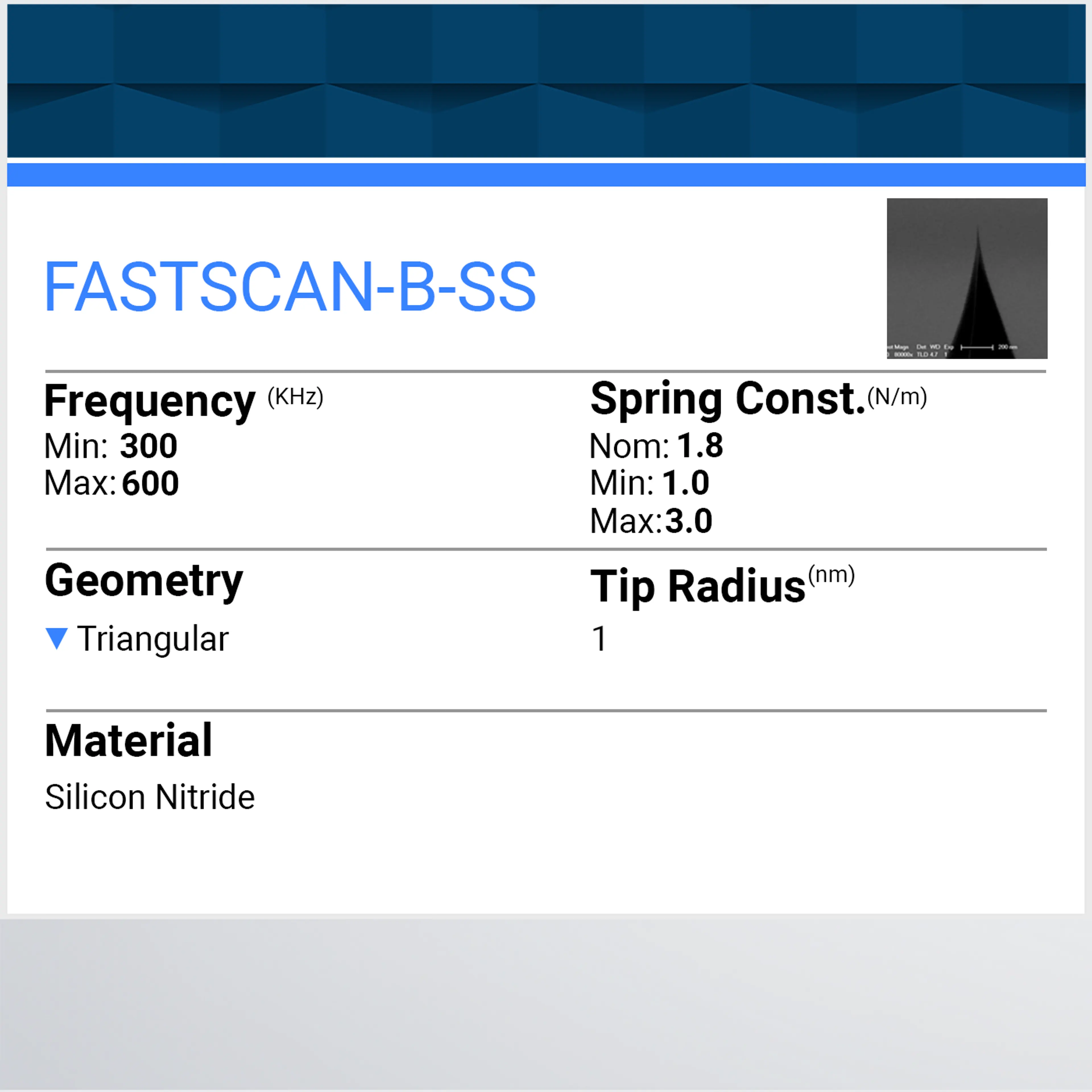

FASTSCAN-B-SS
Description
Super sharp probes for highest resolution imaging at high scan speeds. This probe combines a tip with 1nm nominal end radius with the moderate 1.8 N/m spring constant, and high 450kHz resonance frequency of our popular FastScan-B probe. FastScan-B-SS probes are designed specifically for imaging in fluid on the Dimension FastScan AFM. All FastScan cantilevers have less that 3 degrees of cantilever bend. Using this probe on an AFM other than the Dimension FastScan is not recommended and will result in sub-optimal performance.
Quantity = 10 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 1 2 Frequency (KHz): 450 300 600 Spring Constant (N/m): 1.8 1 3 Length (um): 30 25 35 Width (um): 33 30 36 Cantilever Thickness (um): 0.3 0.25 0.35 Cantilever Material: SiN Reflex Coating: Reflective Gold Geometry: Triangular Tip Specification
Nom Min Max Tip Height (h): 5 Front Angle (FA): 15 Back Angle (BA): 25 Side Angle (SA): 17.5
