FASTSCAN-D
Description
Probes specifically engineered for fast scanning in liquid with a softer cantilever than FastScan-B and FastScan-C, using the Dimension FastScan Bio AFM. FASTSCAN-D probes deliver extreme imaging speed in fluid without loss of resolution or force control! Designed specifically for use with the Dimension FastScan AFM and NanoWizard AFM line but can be used on other high speed AFM systems. FASTSCAN-D probes use a very short ~17um paddle shaped SiN lever with a high 110kHz in fluid frequency and a very low 0.25N/m spring constant meaning compatibility with the very softest sample types in fluid. A 5nm tip radius is optimally balanced for great resolution and longevity.
Quantity = 10 per pack
Technical Data
-
Key specification

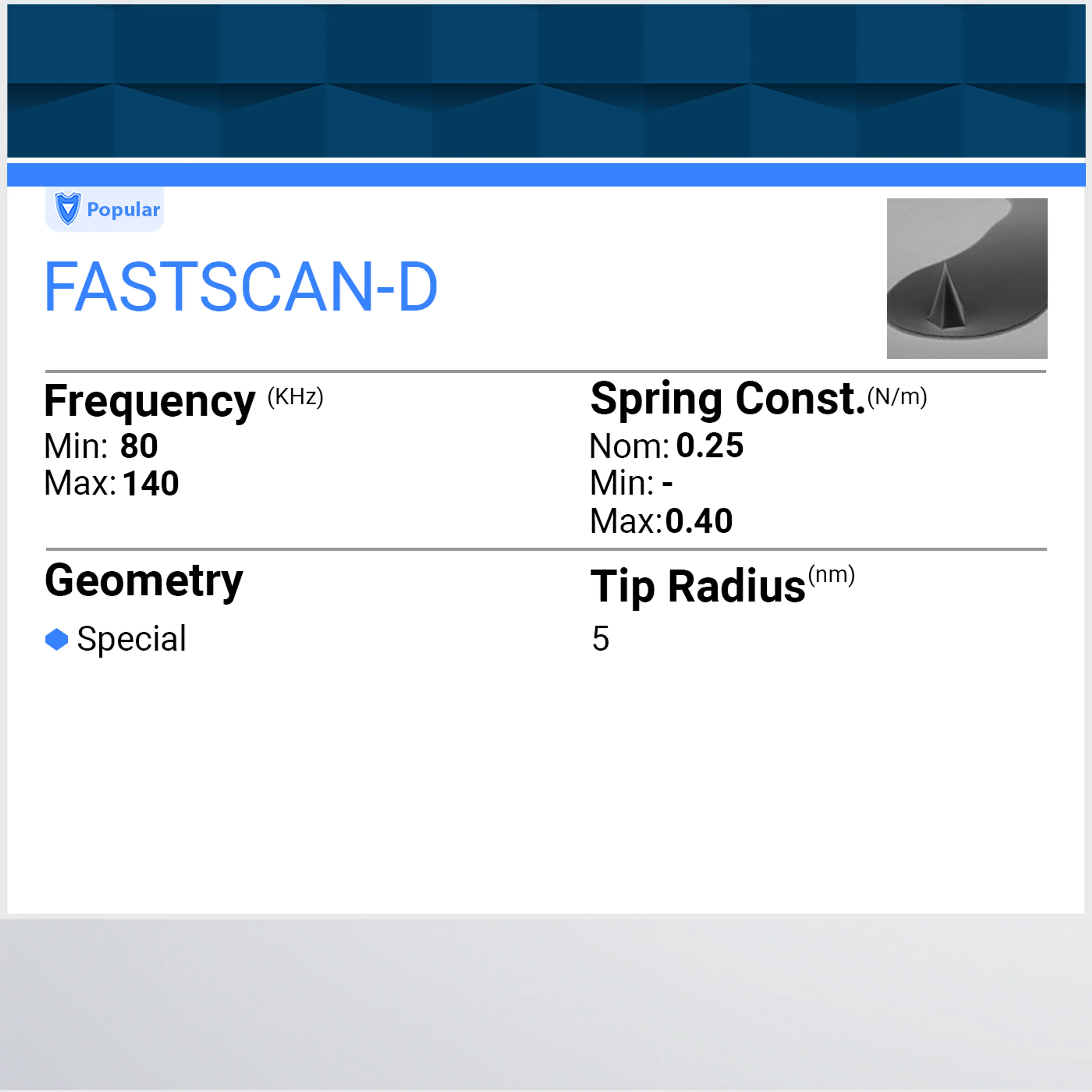

Nom Min Max Tip Radius (nm): 5 8 Frequency (KHz): 110 (fluid) 80 140 Spring Constant (N/m): - 0.4 Length (um): 16 15 17 Width (um): 4 3.5 4.5 Cantilever Thickness (um): 0.145 0.135 0.155 Reflex Coating: Proprietary reflective coating Geometry: Special Tip Specification
Nom Min Max Tip Height (h): 3 1.5 4.5 Front Angle (FA): 15 12.5 17.5 Back Angle (BA): 25 22.5 27.5 Side Angle (SA): 17.5
