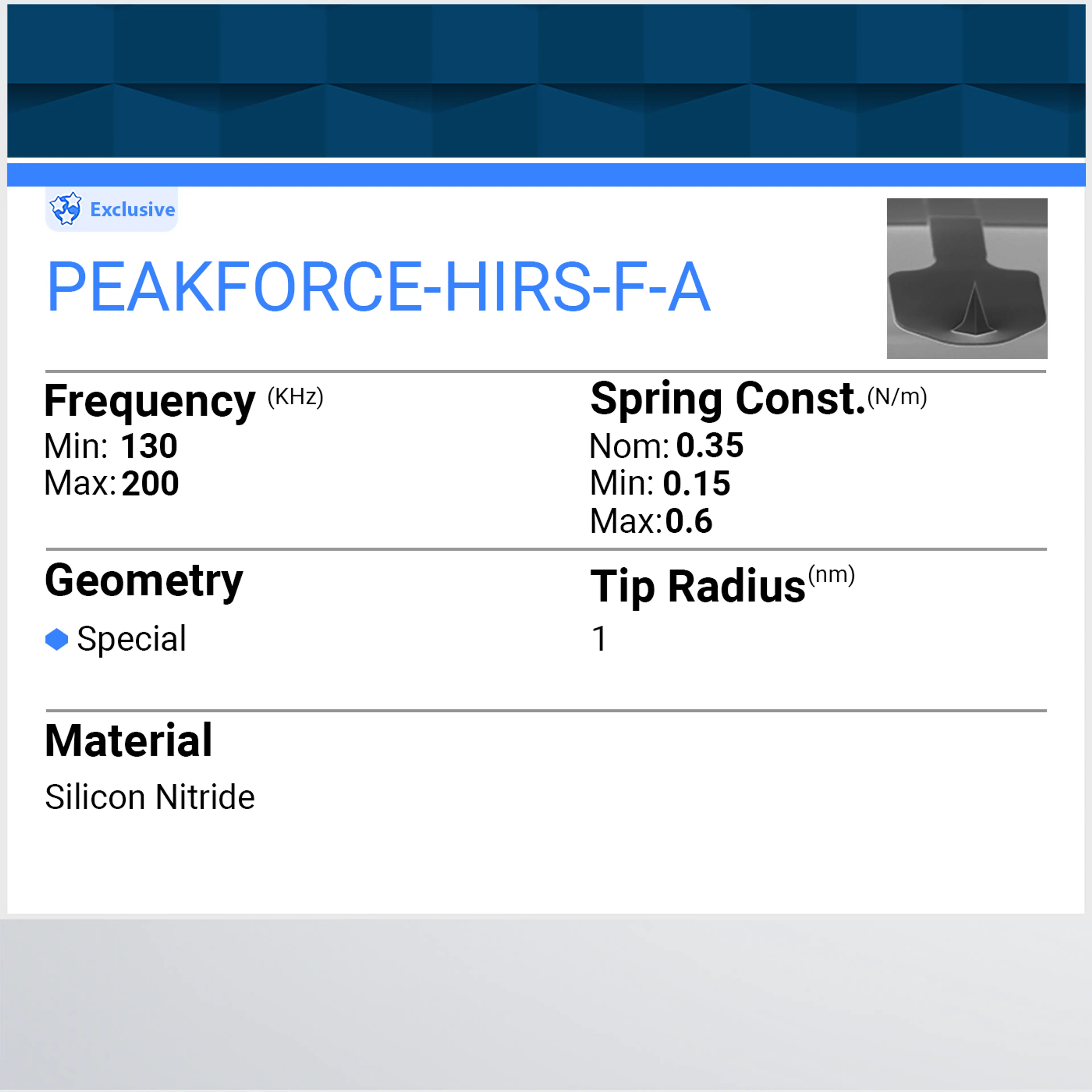

PEAKFORCE-HIRS-F-A
Description
The world's first probe targeted at delivering high resolution on molecular lattices. - Ultra-sharp probe optimized for PeakForce Tapping operation in fluid.
Recommended for use with any PeakForce Tapping enabled Bruker AFM.
Recommended for highest resolution fluid imaging of bio-samples on transparent substrates such as resolving 2D membrane protein lattices.
Tips with 1 nm nominal end radius, 0.35 N/m spring constant.
Quantity = 10 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 1 2 Frequency (KHz): 165 130 200 Spring Constant (N/m): 0.35 0.15 0.6 Length (um): 35 34 38 Width (um): 16 14.5 17.5 Cantilever Thickness (um): 0.31 0.303 0.317 Cantilever Material: SiN Reflex Coating: Reflective Au Geometry: Special Tip Specification
Nom Min Max Tip Height (h): 5.5 3 8 Front Angle (FA): 15 Back Angle (BA): 25
