SAA-HPI-SS
Bruker BNS
Part No:SAA-HPI-SS-1PK
Variation
$892.50
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
New super sharp probe for highest resolution imaging in air on the widest sample range.
Optimized for PeakForce Tapping operation in air. Recommended for use with any PeakForce Tapping enabled Bruker AFM. Combines a tip with 1nm nominal end radius and moderate 0.25 N/m spring constant for reliable highest resolution imaging on any sample, including highly reflective samples. Resonant frequency 55 kHz in air.
Quantity = 10 per pack

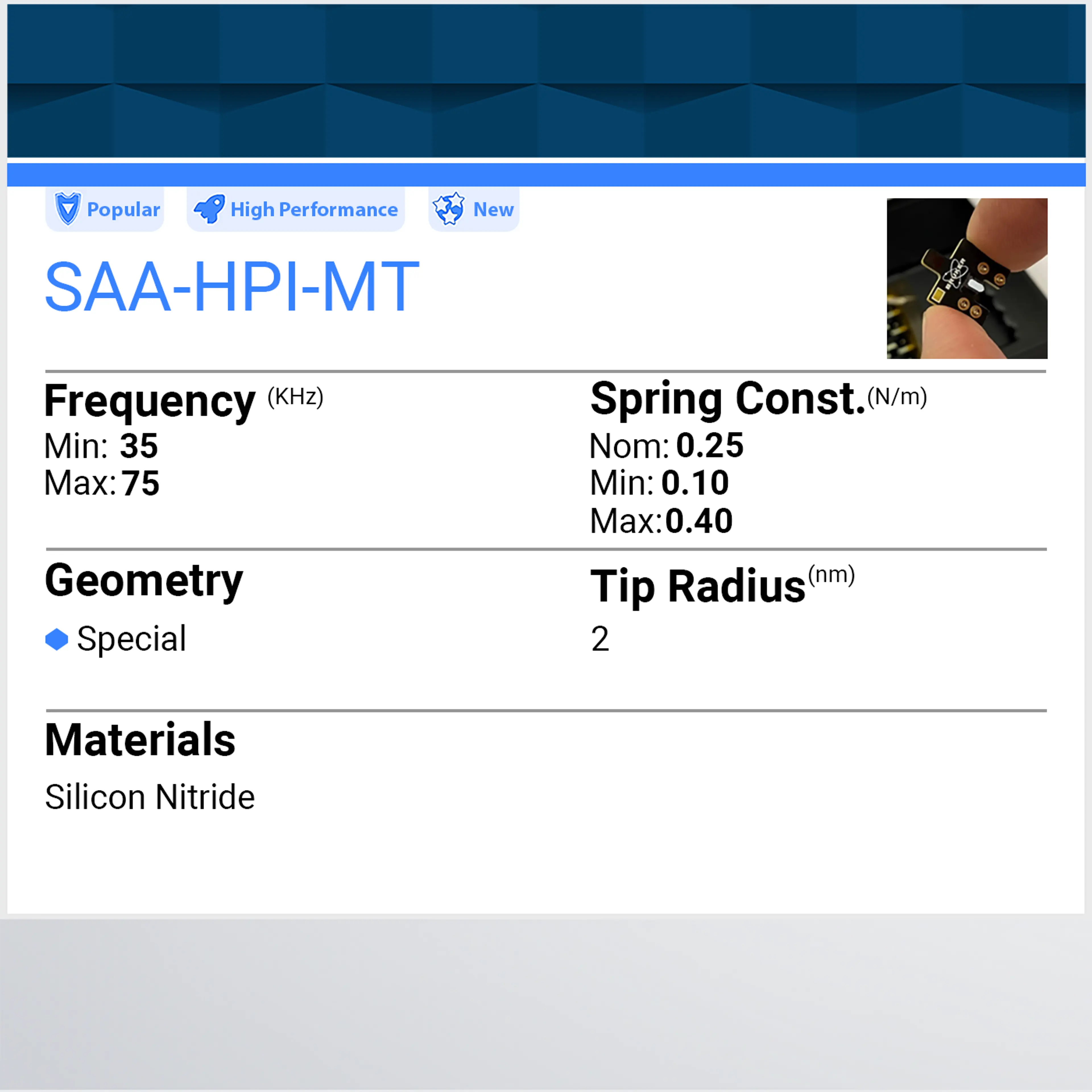

Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 1 | 2 | |
| Frequency (KHz): | 55 | 35 | 75 |
| Spring Constant (N/m): | 0.25 | 0.1 | 0.4 |
| Length (um): | 110 | 100 | 120 |
| Width (um): | 40 | 38 | 42 |
| Cantilever Thickness (um): | 0.58 | 0.53 | 0.63 |
| Cantilever Material: | SiN | ||
| Reflex Coating: | Reflective Al | ||
| Geometry: | Special |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 5.5 | 3 | 8 |
| Front Angle (FA): | 15 | ||
| Back Angle (BA): | 25 |
