SAA-HPI-DC-125
Bruker BNS
Part No:SAA-HPI-DC-125
$599.50
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
SAA-HPI, k Certified, controlled radius, drift comp
Quantity = 5 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|

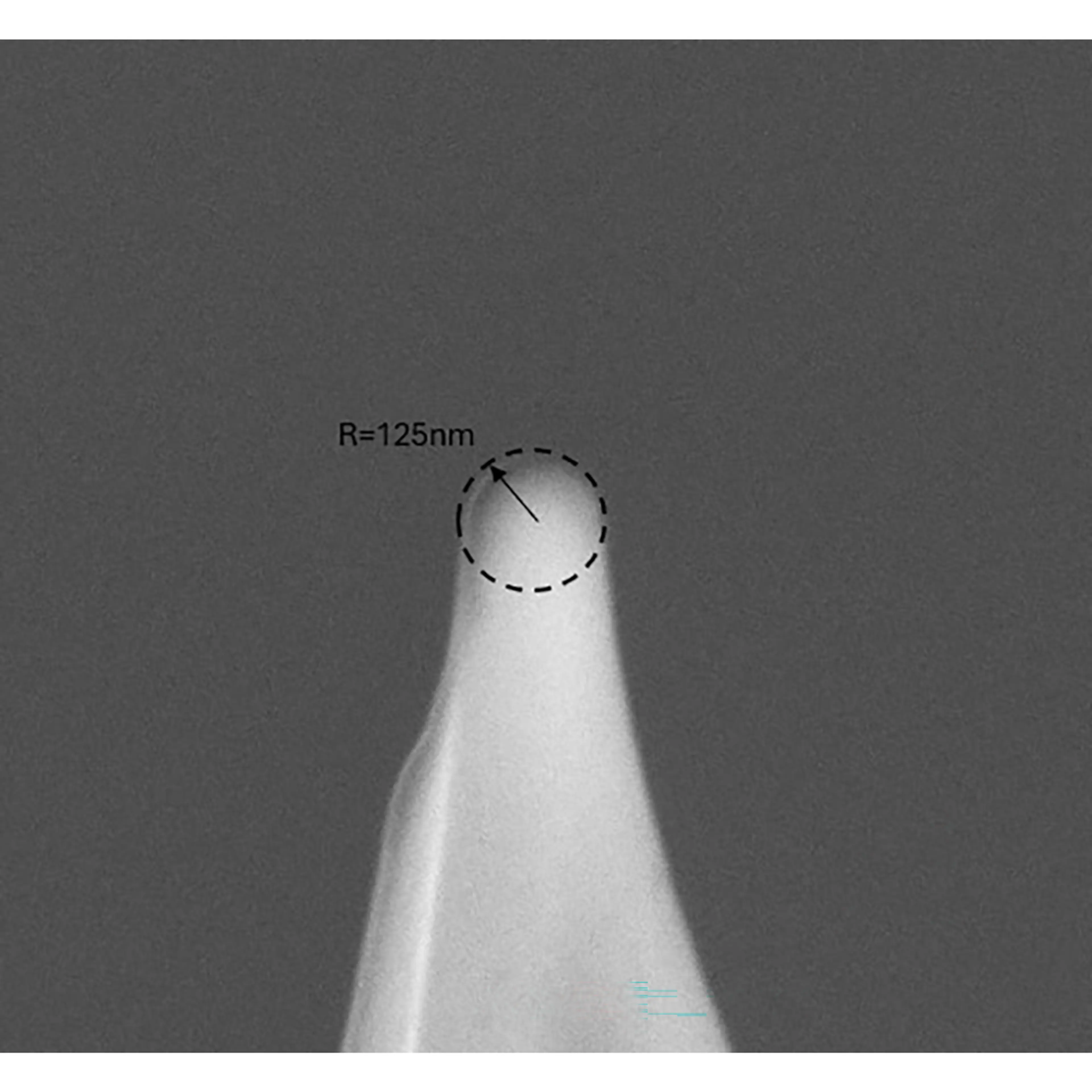

| Tip Radius (nm): | 125 | 138 | |
| Frequency (KHz): | 55 | 35 | 75 |
| Spring Constant (N/m): | 0.25 | 0.1 | 0.4 |
| Length (um): | 110 | 100 | 120 |
| Width (um): | 40 | 38 | 42 |
| Cantilever Thickness (um): | 0.58 | 0.1 | |
| Cantilever Material: | SiN | ||
| Reflex Coating: | |||
| Geometry: |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 5 | 2.5 | 7.5 |
| Front Angle (FA): | 17.5 | 15 | 20 |
| Back Angle (BA): | 25 | 22.5 | 27.5 |
| Side Angle (SA): | 20 | 17.5 | 22.5 |
| Tip-side Coating: |
