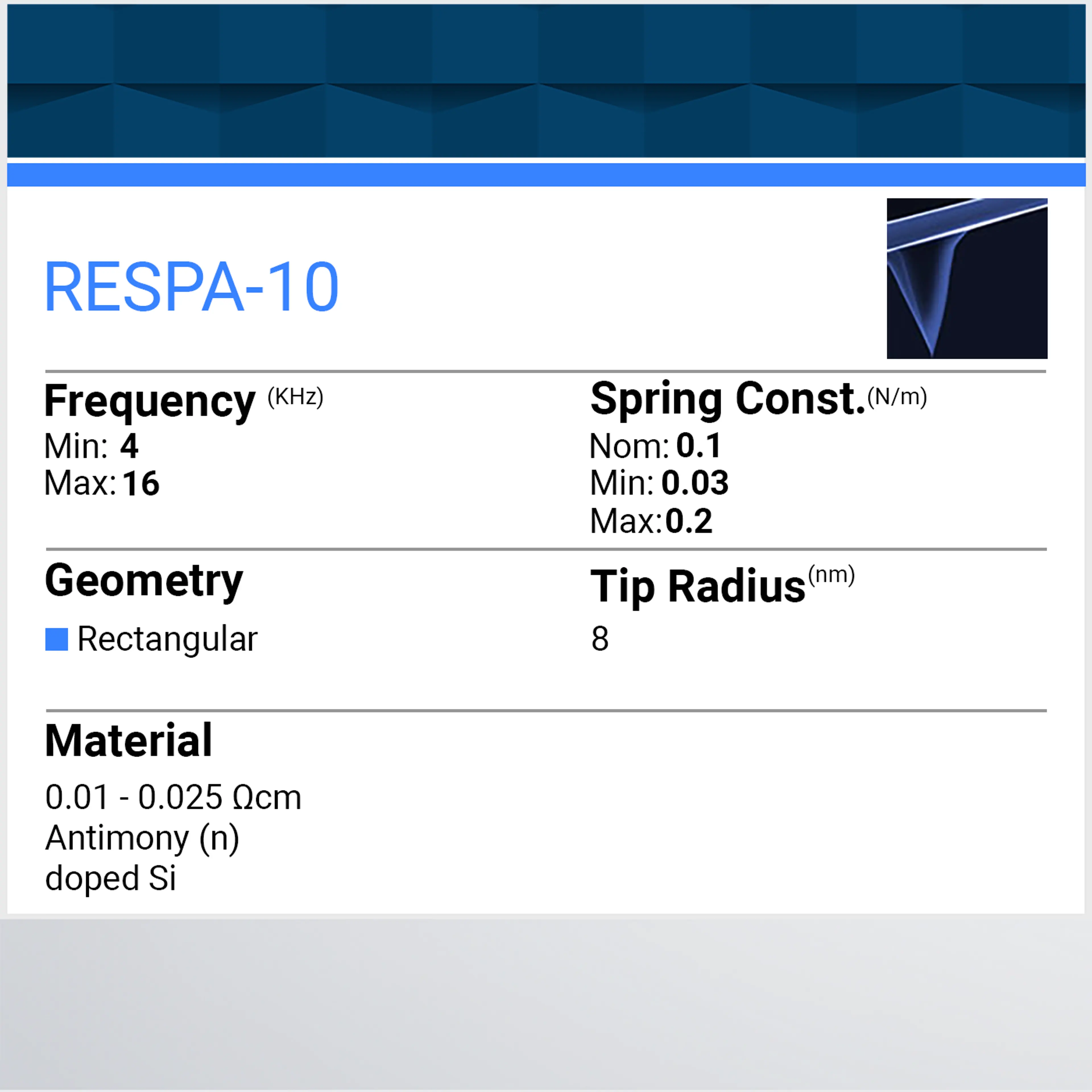

RESPA-10
Bruker BNS
Part No:RESPA-10-1PK
Variation
$404.25
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Premium High-Resolution Contact mode silicon probes on improved V2 cantilever. This probe uses a rotated tip to provide a more symmetric representation of features over 200nm
Quantity = 10 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 8 | 12 | |
| Frequency (KHz): | 10 | 4 | 16 |
| Spring Constant (N/m): | 0.1 | 0.03 | 0.2 |
| Length (um): | 450 | 440 | 460 |
| Width (um): | 35 | 33 | 37 |
| Cantilever Thickness (um): | 1.8 | 1.05 | 2.55 |
| Cantilever Material: | Si | ||
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 12.5 | 10 | 15 |
| Front Angle (FA): | 15 | 13 | 17 |
| Back Angle (BA): | 25 | 23 | 27 |
| Side Angle (SA): | 17.5 | 15.5 | 19.5 |
