SCANASYST-AIR-HR
Description
ScanAsyst-Air-HR probes are specifically designed for use with the ScanAsyst-HR fast scanning accessory on the MultiMode 8 AFM Enjoy up to 20X faster survey scan rates and up to 6X faster scans with no loss of resolution. This remarkable development leverages Brukers exclusive ScanAsyst® Self-Optimizing Atomic Force Microscopy Imaging Mode which has established itself as the industry standard for AFM ease of use. The result is the high-speed ScanAsyst-HR - an imaging mode not just capable of high resolution at fast speeds, but also incredibly easy to use.
Quantity = 10 per pack
Technical Data
-

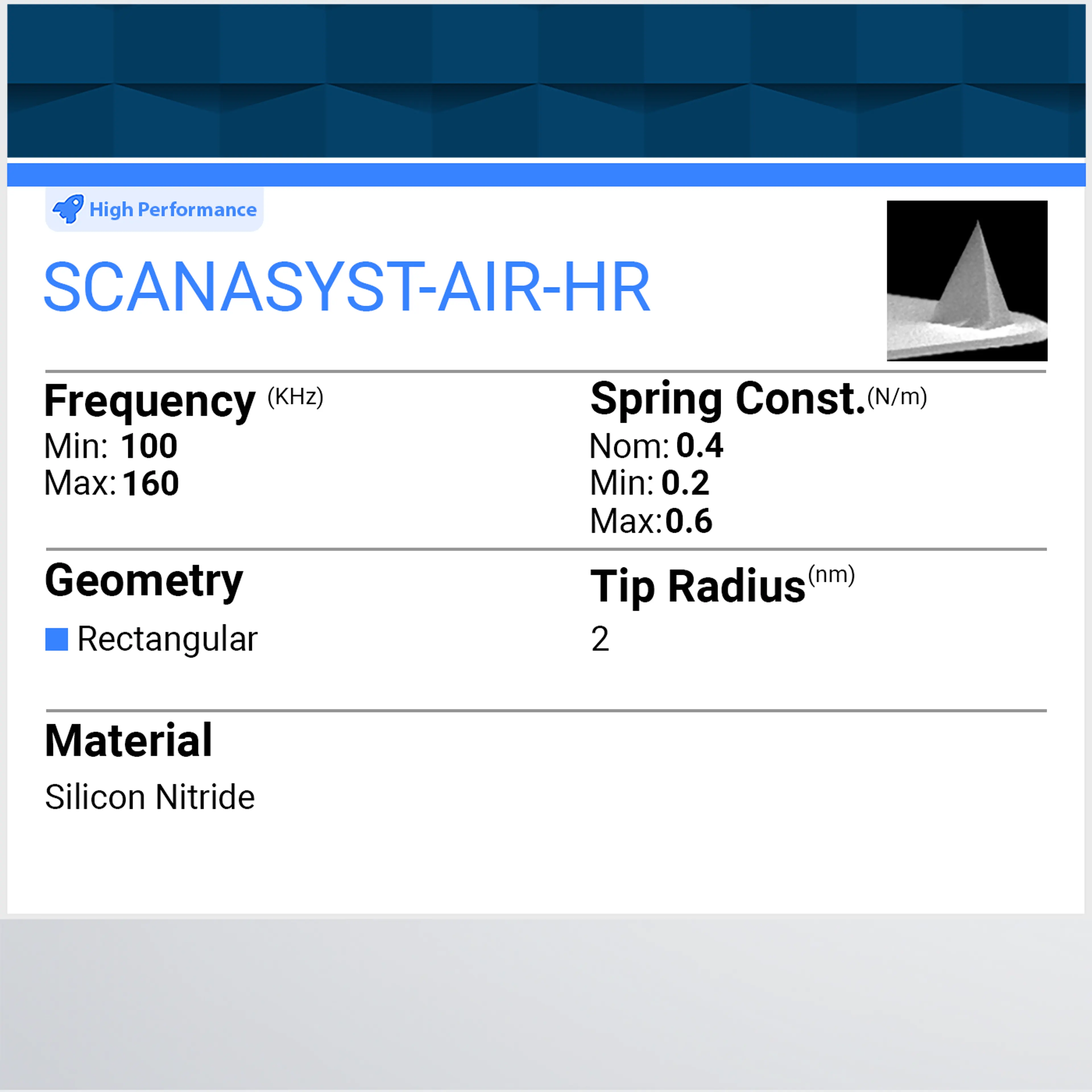

Key specification
Nom Min Max Tip Radius (nm): 2 12 Frequency (KHz): 130 100 160 Spring Constant (N/m): 0.4 0.2 0.6 Length (um): 60 55 65 Width (um): 30 27 33 Cantilever Thickness (um): 0.5 Cantilever Material: SiN Reflex Coating: Reflective Aluminum Geometry: Special Tip Specification
Nom Min Max Tip Height (h): 5
