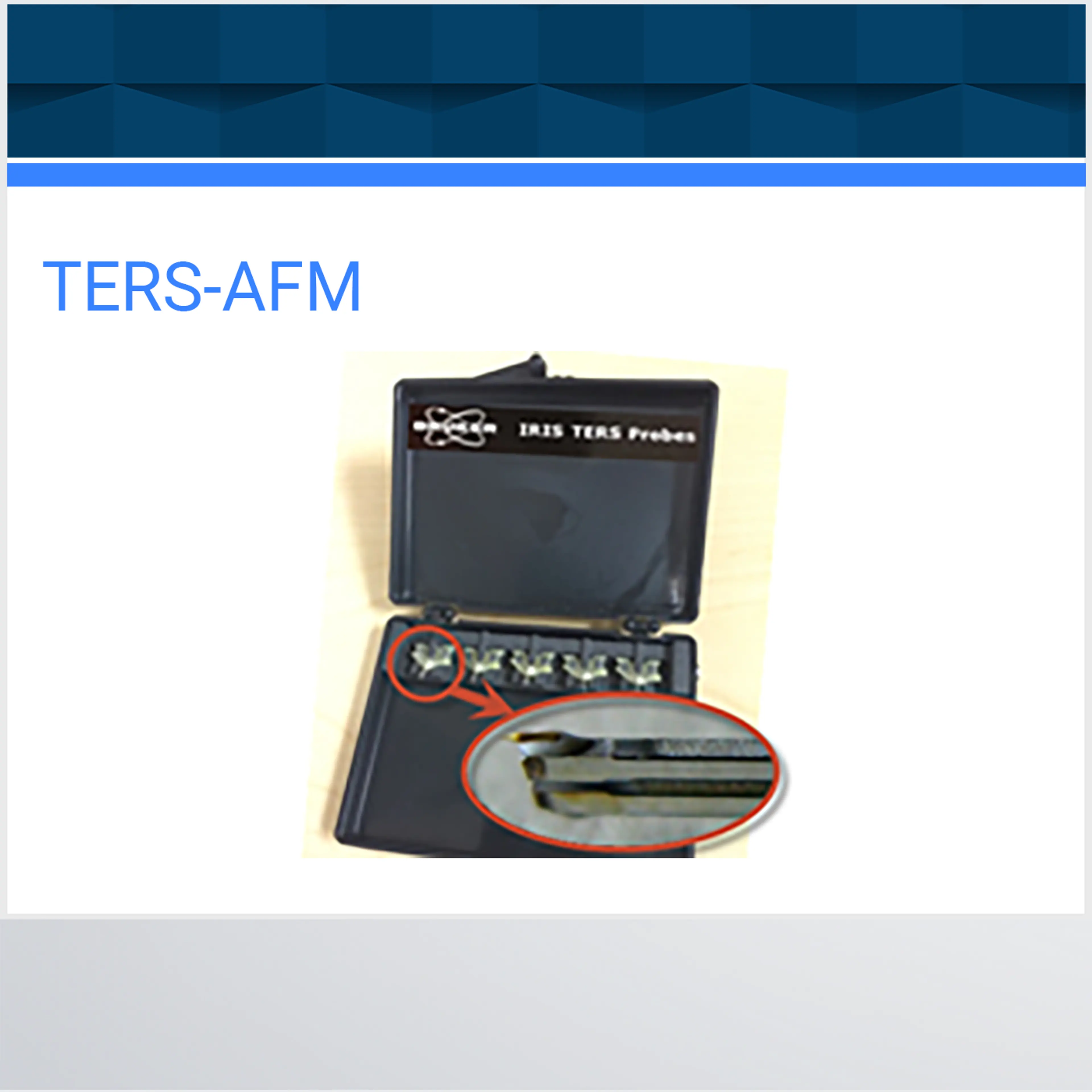

TERS-AFM

Bruker’s Exclusive TERS-AFM Probes. Reliable high performance probes are the central and non-trivial part of any tip-enhanced Raman spectroscopy (TERS) solution. Bruker’s exclusive high contrast TERS probes uniquely provide full access to measurement on a wide range of samples. Bruker’s reliable TERS-AFM tuning fork based probes exhibit zero spectral interference (no feedback laser) delivering superior sensitivity with high confidence. We provide defined performance specifications for these probes: Consistently high enhancement (proprietary optimized fabrication). Long shelf life and reliability at any laser power (solid gold). Proven performance at 633nm excitation.  5-pack of IRIS tuning fork AFM TERS Probes. TERS probes for 633nm using tuning fork force feedback. For use with Innova-IRIS only with special cartridge. Pre-mounted probes on tuning fork for easier and safer handling. Performance of the TERS-AFM probes can be confirmed using TERS-SMPL. Guaranteed performance of 5 out of 10 probes reach to reach >2 contrast (tip-in vs tip-out) on TERS-SMPL >10e5 enhancement is achievable routinely with the TERS-AFM probes on the TERS-SMPL using Innova-IRIS and tuning fork FM feedback. 633nm laser excitation and 1 sec integration.  Quantity = 5 per pack
