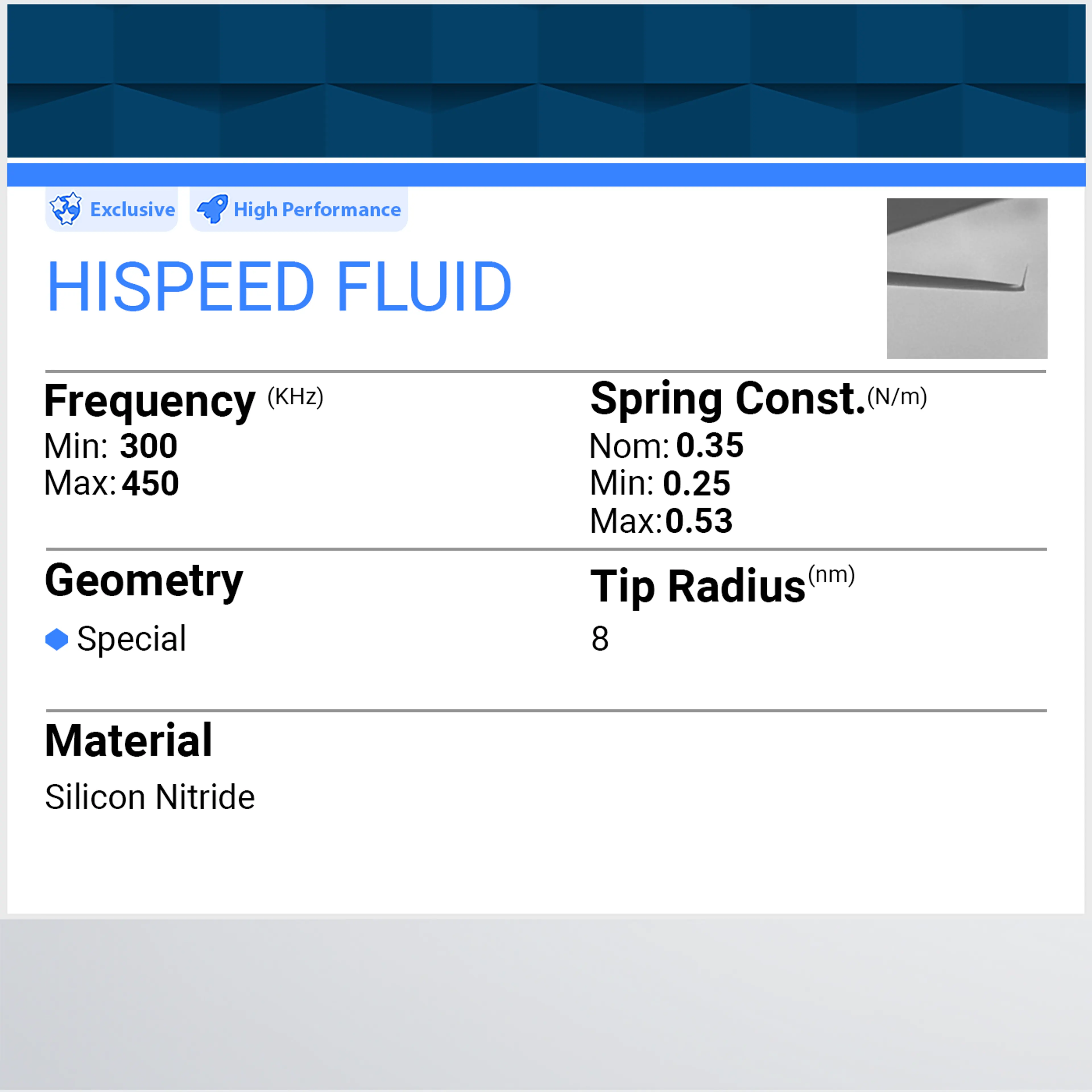

HISPEED FLUID
Description
The high speed fluid probe is a innovative torsion wing based cantilever design that provides a ~120kHz flexural resonance in fluid. This probe has a wear resistant diamond like carbon tip of nominal radius 8nm. With a low spring constant of 0.35N/m these probes are perfect for high resolution, high speed imaging in fluid of samples such as 2D crystals, DNA origami and similar.
Quantity = 5 per pack
Technical Data
-
Key specification
Nom Min Max Tip Radius (nm): 8 12 Frequency (KHz): 375 300 450 Spring Constant (N/m): 0.35 0.25 0.53 Length (um): 18 17 19 Width (um): 3 2.5 3.5 Cantilever Thickness (um): 0.345 0.317 0.373 Cantilever Material: SiN Reflex Coating: Reflective Gold Geometry: Special Tip Specification
Nom Min Max Tip Height (h): 2.25
