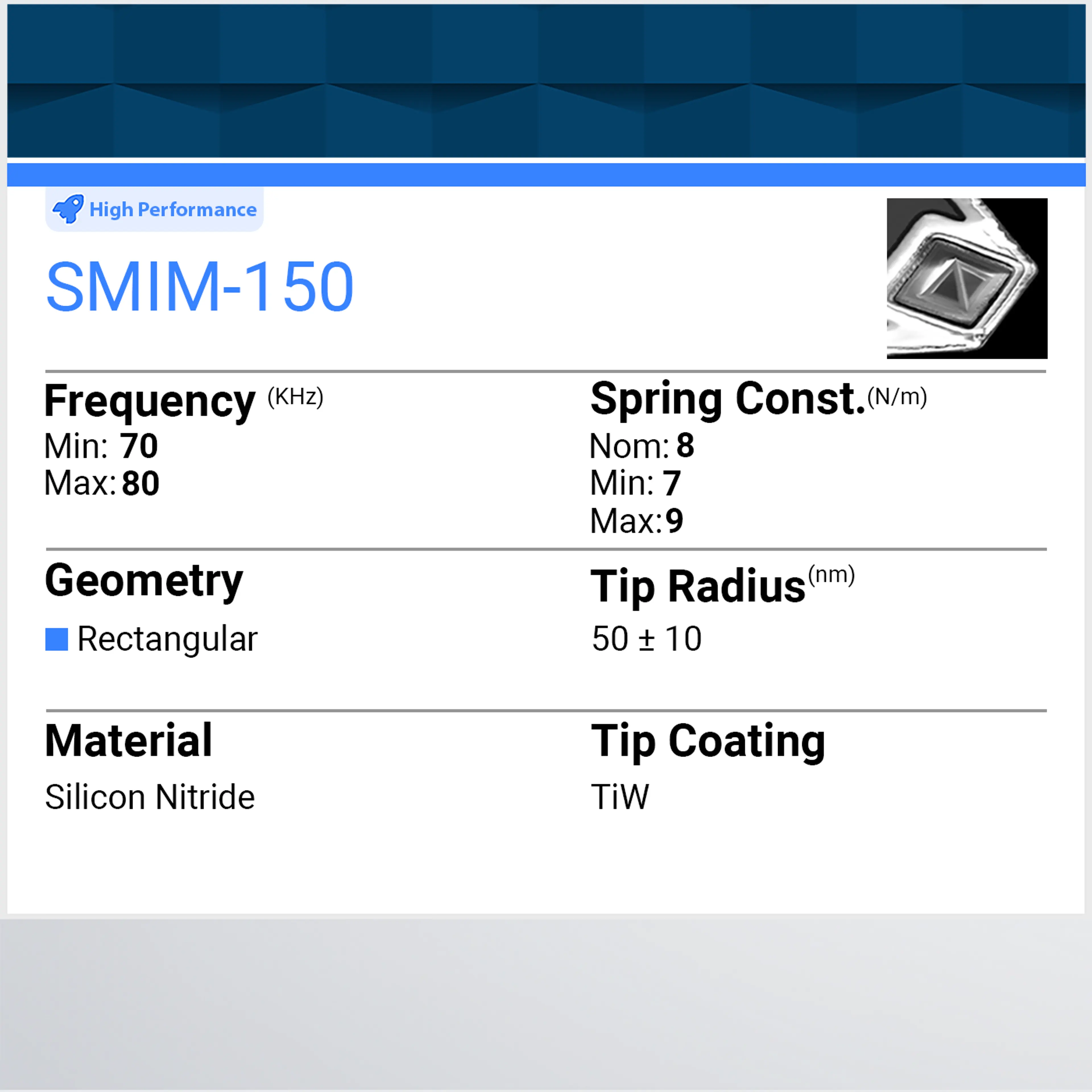

SMIM-150
Bruker BNS
Part No:SMIM-150
$1,210.00
Taxes and shipping costs are calculated at checkout
*Price and availability may vary by region due to local costs and regulations
Nitride probe with shielded co-axial sensor for sMIM; SCM; CAFM. Nominal 75 kHz, 8 N/m
Quantity = 5 per pack
Key specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Radius (nm): | 50 | 40 | 60 |
| Frequency (KHz): | 75 | 70 | 80 |
| Spring Constant (N/m): | 8 | 7 | 9 |
| Length (um): | 150 | 145 | 155 |
| Width (um): | 50 | 47 | 53 |
| Cantilever Thickness (um): | 3.6 | 3.3 | 3.9 |
| Cantilever Material: | SiN | ||
| Reflex Coating: | TiW/Au (500) | ||
| Geometry: | Rectangular |
Tip Specification
| Nom | Min | Max | |
|---|---|---|---|
| Tip Height (h): | 5 | 4.5 | 5.5 |
| Front Angle (FA): | 35 | 34 | 36 |
| Back Angle (BA): | 35 | 34 | 36 |
| Side Angle (SA): | 35 | 34 | 36 |
| Tip-side Coating: | TiW |
