NM-RC-SEM

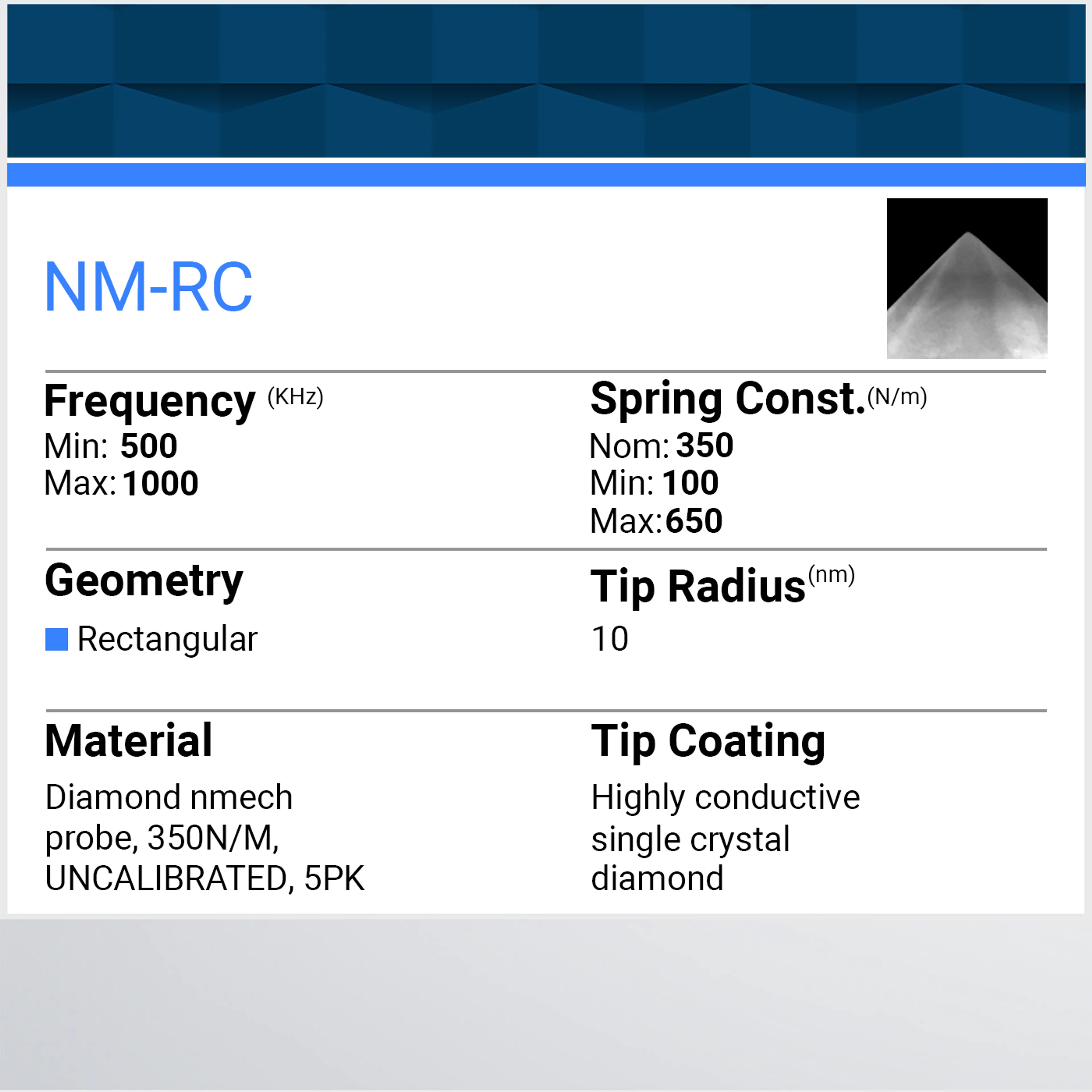

Nanomechanics Probe, 350 N/m, 750kHz, 10nm ROC.

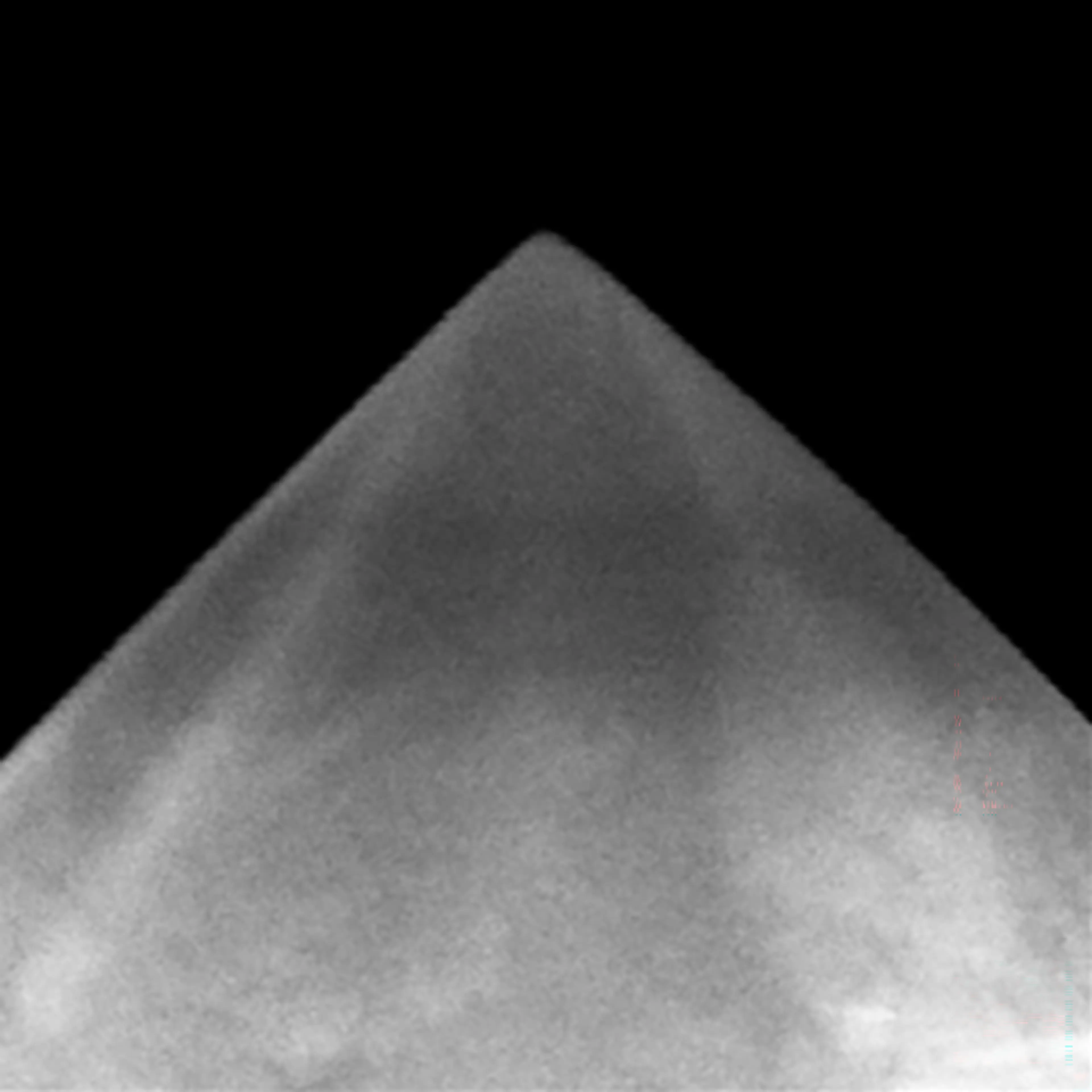

These tips are specifically designed for high mechanical loads and scratch testing applications. By using wear-resistant diamond and a broad cone angle, the contact size is well characterized and stays constant during repeated mechanical measurements. These probes have demonstrated highly repeatable deep (~100nm) indentations into materials such as fused silica and can image the indents at high resolution in-situ using the same probe. Each probe comes with a high-resolution SEM image showing the precise tip shape to enable fully quantitative measurements. A gold reflex coating is deposited on the detector side of the cantilever to enhance the reflectance of the laser beam.

Nanomechanical modes: Tomography, nano scratching, and nanoindentation, and their combination with PeakForce QNM, FASTForce Volume, or contact resonance.

Quantity = 10 per pack
